Technical Specification
| Network | POE (Power over Ethernet) |
| Power Supply | 12 V DC to 57 V DC |
| Transmission Distance | (20 km) 12.43 mi |
| Optical Cable | Multimode: 850 nm, (550 m) 1804.46 ft or 1310 nm, (2 km) 1.24 mi
simple module: 1310 nm, (40 km) 24.85 mi or 1510 nm, (120 km) 393700.8 ft |
| Anti-thunder | 4 KV |
| Communication Mode | Full-Duplex & Half-Duplex |
| Standard | IEEE802.3 10BASE-T; IEEE802i 10Base-T; IEEE802.3u; 100Base-TX/FX;
IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X, IEEE802.3x |
| Input | DC12-57 V, Overcurrent 4.0 A protection, Reverse connection protection |
| MTBF | 300000 Hr |
| Protection Grade | IP40 |
| Fan | No Fan, Natural Heat Dissipation |

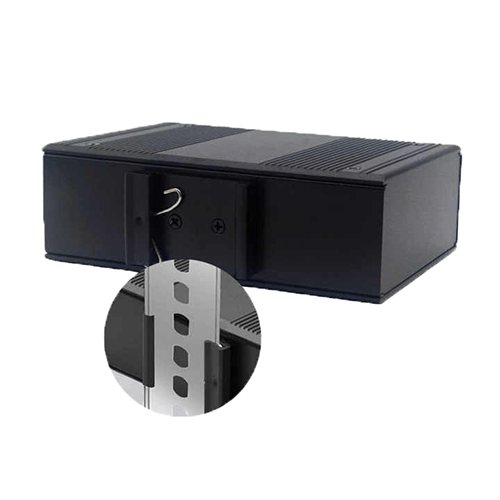

| Installation Method | 35mm DIN-Rail Mounting or Desktop |
| Functions Ordered | POE (IEEE 802.3 aft or at) |
| Operating Humidity | 5 % to 95 % (non-condensing) |
| Operating Temperature | -22 °F to 176 °F (-30 ℃ to 80 ℃) |
| Dimensions (WxDxH) | 4.92 in × 3.93 in × 1.18 in
(125 mm x 100 mm x 30 mm) |
| Weight | 1.32 lb (6 g) |
