Overview

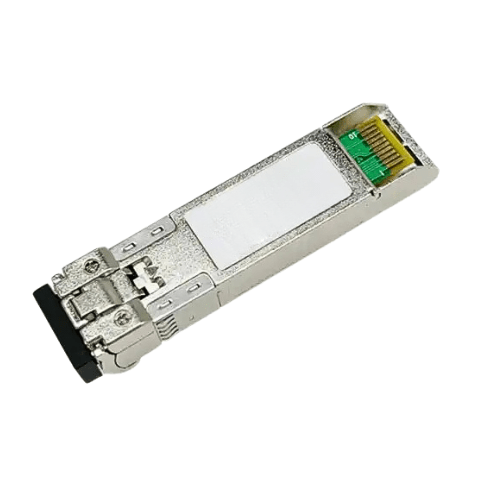

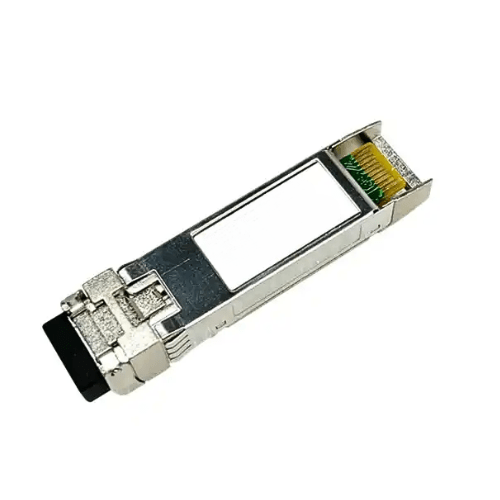

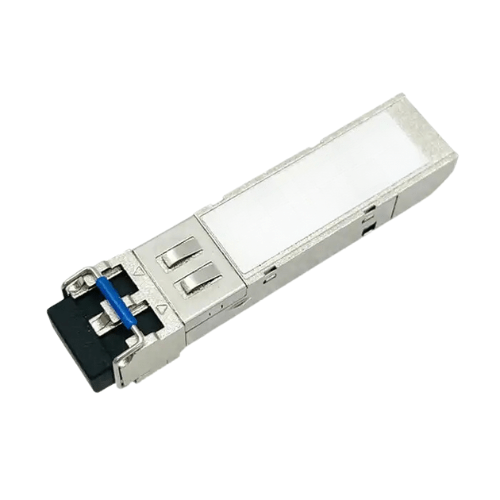

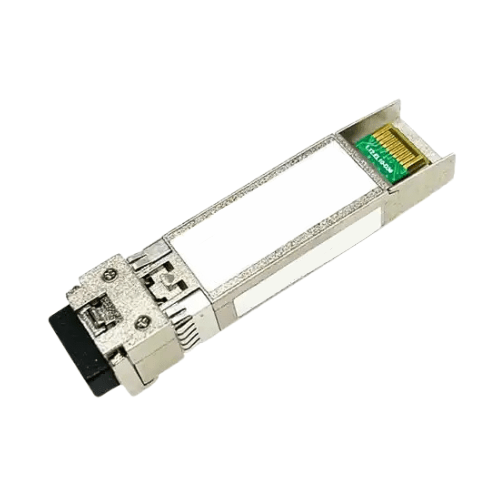

Emissions And Stack SFP Transceiver optical communication module has a wide range of products, supports a variety of scenes, including dual fiber bidirectional transmission, single fiber bidirectional transmission, cwdm and dwdm. The module conforms to the msa protocol, and it has the characteristics of low power consumption, small size, multi-rate, and compatibility with network applications such as Ethernet/ SDH/ SONET/ CPRI/ FC, with the farthest transmission distance of up to 120 km conforms to the RoHS standard and supports digital diagnostic capabilities.
Features
- Adopt SFP hot plug packaging, with LC interface
- Support an overall rate of 1. 25G Gb/ s, backward compatibility
- Support optional specifications of double fiber, single fiber, CWDM, DWDM
- Suitable for networks such as Ethernet/ FC/ SDH/ SONET/ CPRI
- Single-mode optical fiber supports a transmission distance of up to 120 km
- Built-in DDM
- Working temperature: 32 ºF to 158 ºF (0 ºC to 70 ºC)
- comply with RoHS standards
Technical Specifications
| Wavelength | 1550 nm |
| Fiber Type | Dual Fiber Single Mode |
| Connector | LC, RJ 45 |
| Transmission distance | 120 km |
| Transmitted optical power | 0 dBm to 5 dBm |
| Receiving Sensitivity | <-31 dBm |
| Overload optical power | -9 dBm |
| Temperature | 32 ºF to 158 ºF (0 ºC to 70 ºC) |
