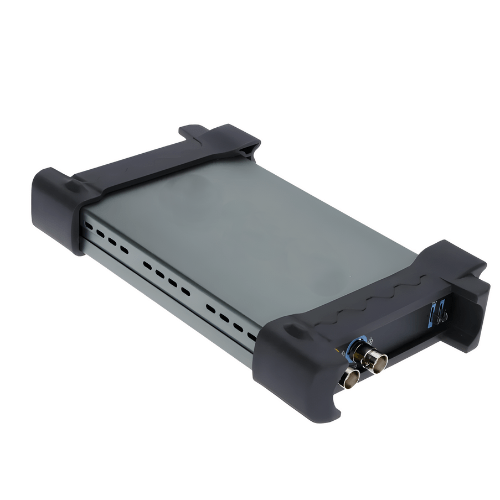

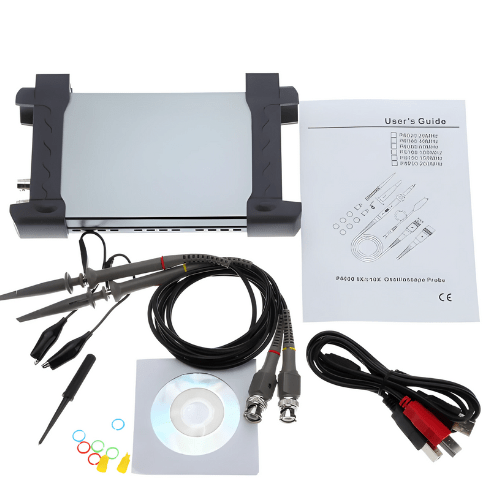

Features

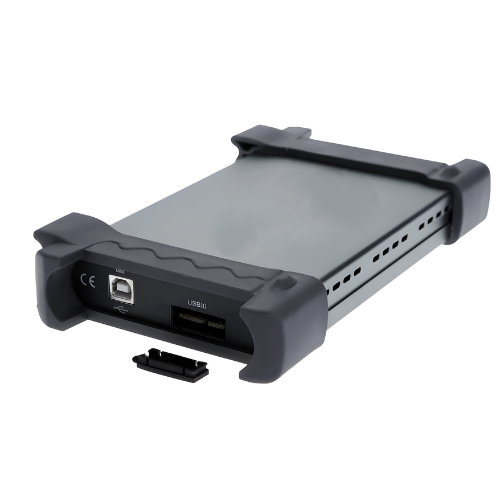

- Standard interface
- Easily inserts into it housing to make up a combination instrument
- 0 interface, no external power source required, easy to use
- Be suitable for notebook computer
- Product line maintenance, be used easily on business
- Can be carried easily
- High performance, 48 MS/s real-time sampling, 20 MHz Bandwidth
- Operating System Windows 7, Windows NT
- Operating System Windows 2000, Windows XP, VISTA
- 23 measurement functions
- PASS or FAIL Check, be suitable for technical application
- Waveform average, persistence, intensity, invert
- Addition, subtraction, multiplication, division, X-Y plot
- Save waveform in text file, jpg or bmp graphic file
- Save waveform in MS excel/word file
- FFT
- One computer can connect many DSO, extend channel easily
- Lab view or VB or VC Second Design instance
Technical Specifications
| Channel | 2 channels |
| Bandwidth | 20 MHz |
| Input impedance | 1 MΩ 25 pF |
| Max. Sample rate | 38 Ms per s |
| Vertical resolution | 8-bit |
| Gain range | 20 mV to 5 V, 8 steps |
| DC accuracy | ± 3 % |
| Time based range | 1 ns to 9000 s 39 Steps |
| Vertical adjustable | Yes |
| Input protection | Diode clamping |
| X-Y | Yes |
| Trigger mode | Auto, Normal, Single |
| Trigger slope | + / – |
| Trigger mode adjustable | Yes |
| Trigger type | Rising edge, falling edge |
| Trigger source | CH 1, CH 2 |
| Pre/Post trigger | 0 % to 100 % |
| Sampling selection | Yes |
| Waveform display | Port or line, waveform average, persistence, intensity |
| Network | Open or Close |
| Vertical mode | CH1, CH2, Dual, ADD |
| Cursor measurement | yes |
| Math | FFT, addition, subtraction, multiplication, division |
| Dimensions | 8.0 in x 4.7 in x 1.3 in (205 mm x 120 mm x35 mm) |
