Overview

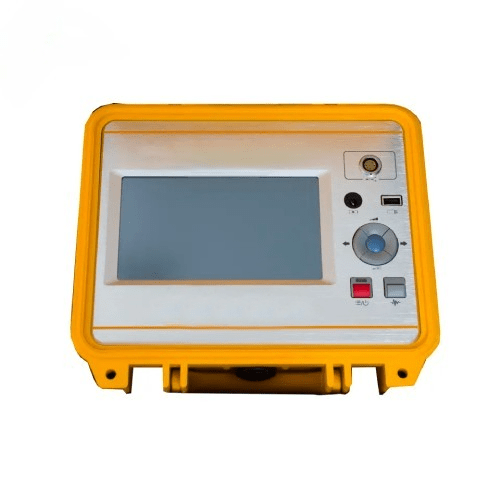

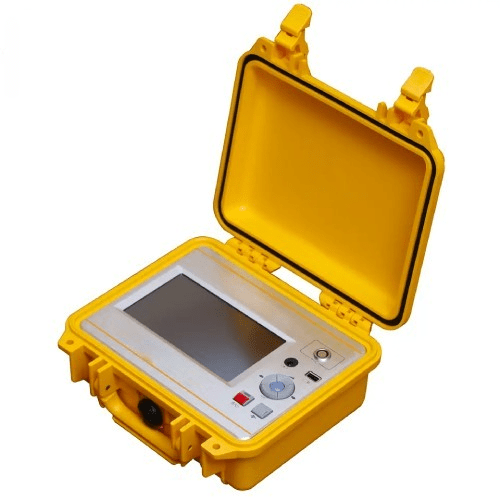

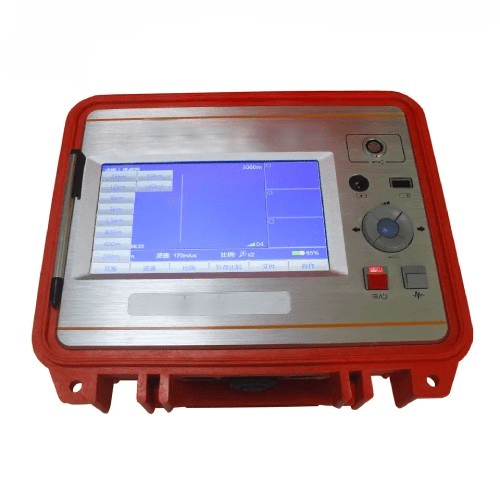

Emissions And Stack underground cable fault locator is an easy operation device used for distance locating. It is easy to operate, supports both touch screen and button operation and has a friendly interface. This device can be used alone under the low voltage impulse mode.
Features
- Multiple distance locating method
- 200 MHz real-time sampling
- Big color LED screen, friendly interface
- 7 in (17.78 cm) LED screen, 750 cd/m2 brightness for sunlight
- Waveform storage and PC communication
- Power management
Technical specification
| Sampling Frequency | 200 MHz |
| Gain Range | 0 to 70 dB |
| Low Voltage Impulse Voltage | 32 V |
| Locating Range | 62.13 mi (100 km) |
| Power Supply | Input AC 220 V, 50 Hz, current 1 A, charge for 6 hours |
| Operating Temperature | 14 °F to 104 °F (-10 ℃ to 40 ℃) |
| Elevation | <2.79 mi (4.5 km) |
| Dead Zone | 6.56 ft (2 m) |
| Battery | L-ion battery rechargeable batteries,7.4 V endurance time over 7 hours |
| Communication Interface | USB |
| Humidity | 5% to 90% RH |
| Weight | 7.71 lb (3.5kg) |
| Dimension | 10.78 in x 8.58 in x 3.18 in (274 mm x 218 mm x 81 mm) |
