Overview

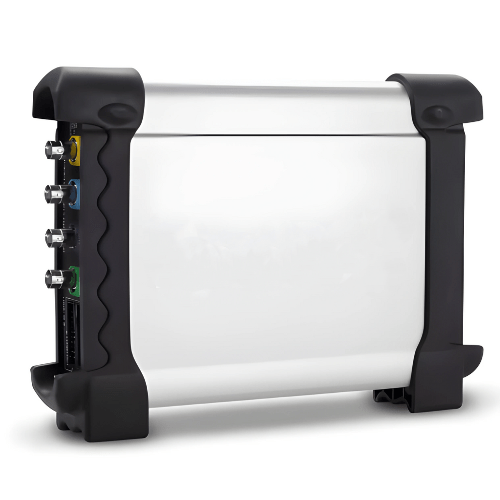

Emissions And Stack virtual benchtop logic analyzer performance can compete bench top oscilloscope, 4 independent analog channels, 1 GSa/s high-speed real-time sampling rate, 1 mV to 10 V/DIV high input sensitivity, 250 MHz high bandwidth. Function or Arb waveform generator 200 MSa/s DDS, 12 bits vertical resolution, build-in various standard waveforms, arbitrary waveform which is convenient to edit and show irregular signals like transducer. USB 2.0 Interface, plug and play device, Small in size easy to carry, High cost performance. PASS or FAIL test, rich trigger function, dynamic cursor tracking, waveform recording and replay function. Support PoE module, support PoE power supply remotely and network port communication (optional).
Features

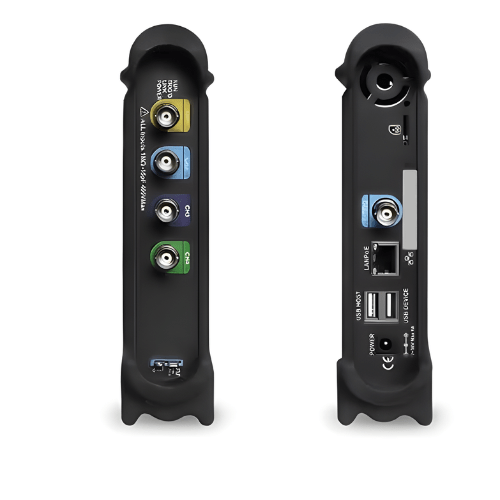

- 4CH Oscilloscope + 16 CH Logic Analyzer + 1 CH Function or Arb
- Waveform Generator + 16 Bits Word Generator + 1 CH EXT Trigger
- 128 M memory depth, save maximum 128 M sampling points
- Accurately display sampling signal
- Support PoE module
- Support power supply remotely and communication
- High-cost performance
- Continuous waveform recording
- Replay function (200 Hz recording bandwidth)
- 1 GSa/s sampling rate
- 12 V to 36 V wide range input power
- Good mechanical design with small size which is easy for carrying
- Outer case is made by same material with iPad – Anodised aluminium
- It has great heat resistance and abrasive resistance
- With beautiful appearance
- The hardness of aluminium alloy surface is greatly improved
- More fit for tablet PC, laptop PC, maintenance
- Adjustment of production line, convenient for travel
- Software support Windows10, Windows 8, Windows 7
- Waveform data could be output to EXCEL, BMP, JPG as time and voltage
- More than 20 kinds of automatic measurement function
- PASS or FAIL Check function, fit for engineering application
- Waveform averaging, afterglow, lightness control, reverse
- Add, subtract, multiply, divide, X-Y display
- FFT spectrum analyzer
- One computer could connect with multiple oscilloscopes
- Expand the channel number easily
- Provide SCPI protocol
Technical Specifications
| Input Impedance | Resistance 1 MΩ, Capacitance 25 pF |
| Analog Channels | 4 |
| Bandwidth | 100 MHz |
| Input Sensitivity | 1 mV/div to 10 V/div |
| Input Coupling | AC or DC or GND |
| Vertical Resolution | 8 bits |
| Memory Depth | 1.6 K to 128 M or CH |
| Max. Input Voltage | 400 V (DC + AC Peak) |
| Rise Time | 3.5 ns |
| Real-Time Sampling Rate | 1 GSa/s |
| Time Base Range | 2 ns/div to 1000 s/div |
| Time Base Precision | ± 50 ppm |
| Source | CH1, CH2, CH3, CH4, EXT, EXT or 10 |
| Mode | Edge, Pulse, Video, Slope, Timeout |
| Type | Signal, Auto, Normal |
| Auto Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Cursors Measurement | Horizontal, Vertical, Cross |
| Waveform Signal Process | +, -, x, ÷, FFT, Invert |
| Voltage Range | 1 mV to 10 V/div at x 1 probe, 10 mV to 100 V/div at x 10 probe, 100 mV to 1 KV/div at x 100 probe, 1 V to 10 KV/div at x 1000 probe |
| Interface | USB 2.0 |
| Power Supply | 8 V to 36 V Wide range of input voltage, suitable |
| Size | 10.0 in x 7.4 in x 1.7 in (255 mm x 190 mm x 45 mm) |
| Weight | 2.2 lb (1 kg) |
