Features

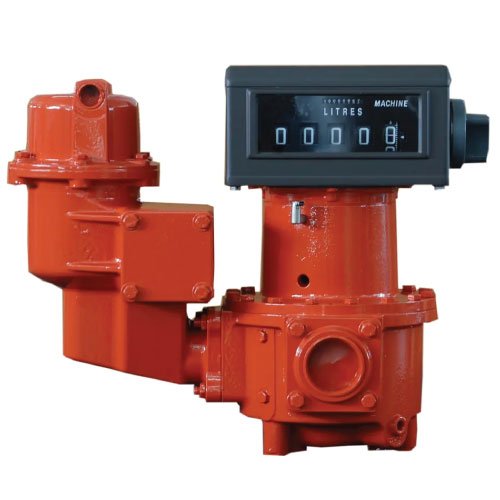

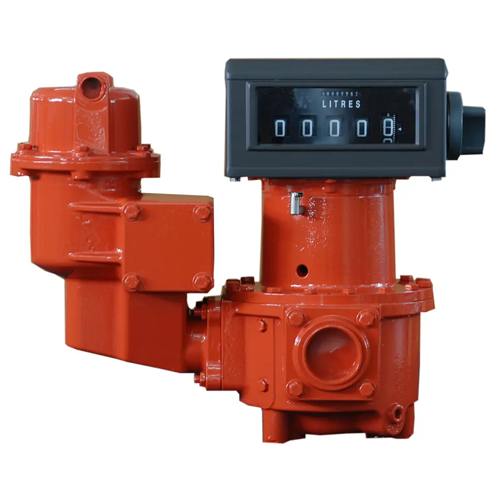

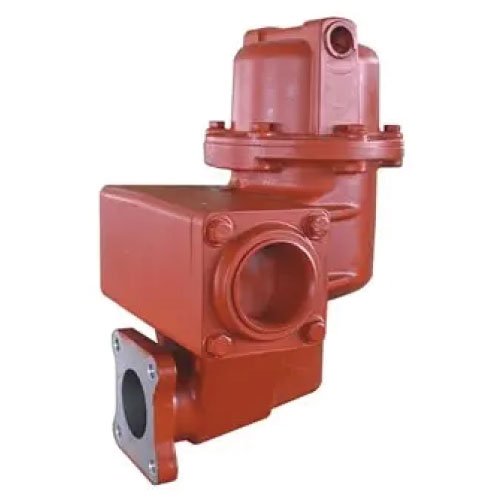

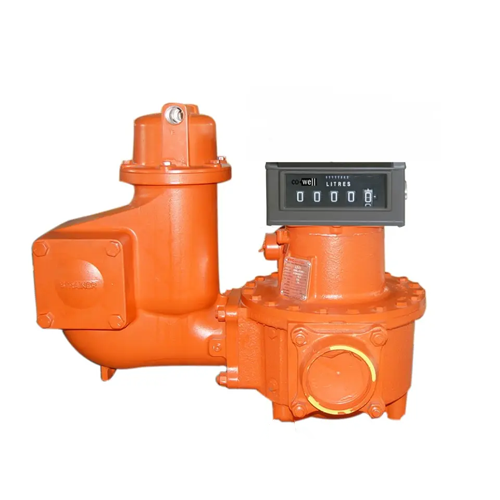

- FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters
- Superior accuracy and metering for a wide range of products, such as, gasoline, kerosene, fuel oils etc
- Compact, versatile design can be readily fit into nearly all installations
- Low pressure drop meter results in low meter slippage and thus superior meter accuracy
- Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long time operation
Technical specifications
| Type | Variable Area Petroleum Flow Meters |
| Accuracy | 0.2 % |
| Repeatability | <= 0.07 % |
| Medium | fuel oil |
| Size | 2 in (50 mm) |
| Flow Range (L/min) | 38 to 380 |
