Overview

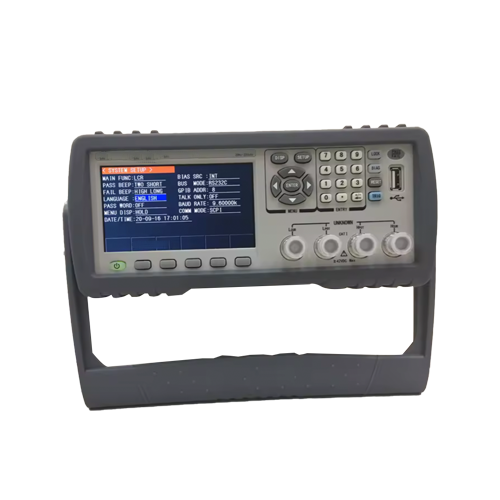

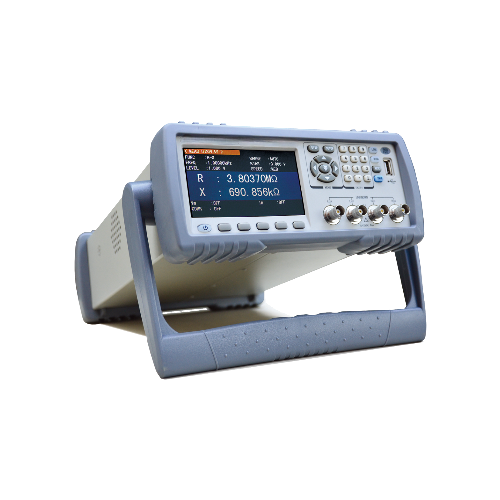

Emissions And Stack’s high accuracy laboratory LCR meter with wide test frequency is a compact device designed for precise measurement of inductance, capacitance, resistance, and impedance. It offers a wide test frequency range from 20 Hz to 200 kHz with a basic accuracy of 0.05%, making it ideal for research, production quality control, and laboratory use. A 4.3-inch TFT LCD display ensures clear readings, while advanced circuit design provides stability and repeatability.
Features
- Wide test frequency ranges from 20 Hz to 200 kHz
- High measurement accuracy of 0.05%
- 3-inch TFT LCD display with easy operation
- Voltage and current monitoring functions
- Software-controlled power switch for reliability
- Multi-point frequency selection for flexible testing
- Supports automated systems with multiple interfaces
- Stable performance ideal for research and production
Technical Specifications
| Test Frequency Range | 50 Hz to 100 kHz with 34 points, 20 Hz to 200 kHz with 15,025 points |
| Basic Measurement Accuracy | LCRZ: 0.05%, DCR or Turn Ratio: 0.1% |
| Calibration Conditions | Warm-up ≥ 30 s, Ambient temperature: 64.4 °F to 82.4 °F (18 °C to 28 °C), Signal voltage: 0.3 V to 1 V RMS, Zero clearing: after Open and Short, Cable length: 0 ft (0 m) |
| Signal Source Output Impedance | Selectable 30 Ω or 100 Ω (±1% at 1 kHz) |
| AC Test Signal Voltage | Normal mode: 10 mV to 2 V RMS, Resolution: 10 mV, Accuracy: ± (10% of setting + 2 mV), |
| AC Test Signal Current | Normal mode: 100 μA to 20 mA RMS, Resolution: 0.1 mA, Range: 500 μA to 10 mA RMS |
| Constant Voltage Mode | 20 mV to 1 V RMS, Resolution: 10 mV, Accuracy: ± (10% of setting + 2 mV), |
| Constant Current Mode | 200 μA to 10 mA RMS, Resolution: 0.1 mA |
| Measurement Functions | Inductance, capacitance, resistance, impedance, DC resistance |
| Display | 4.3 in TFT LCD |
| Interfaces | Multiple standard interfaces; SCPI compatible |
| Power Supply | AC 100 V to 240 V |
| Ambient Temperature (Calibration) | 64.4 °F to 82.4 °F (18 °C to 28 °C) |
| Dimensions | 15.75 in x 15.75 in x 15.75 in (40 cm x 40 cm x 40 cm) |
| Weight | 44.09 lb (20 kg) |
