Overview

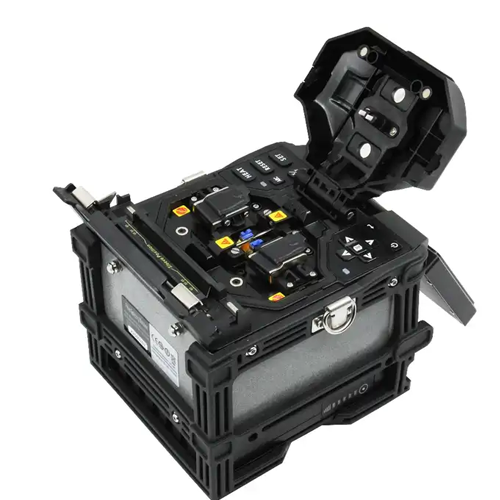

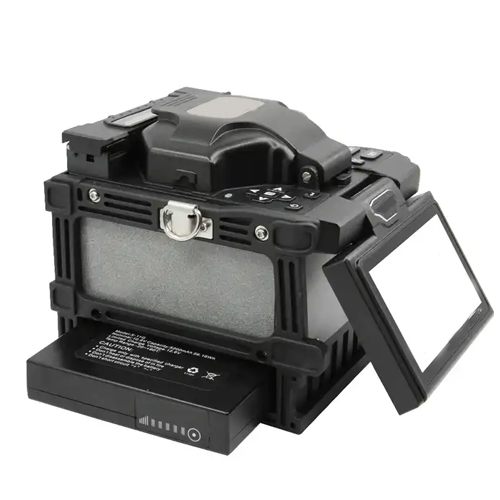

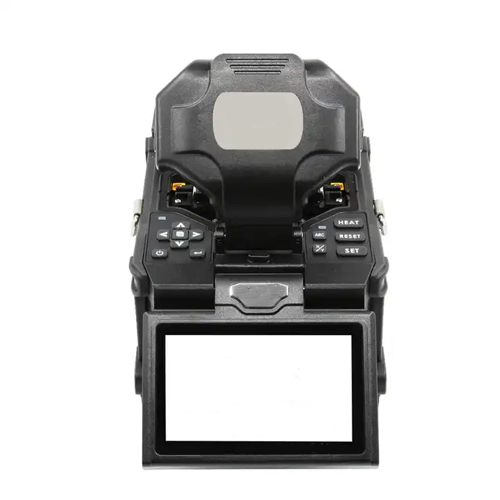

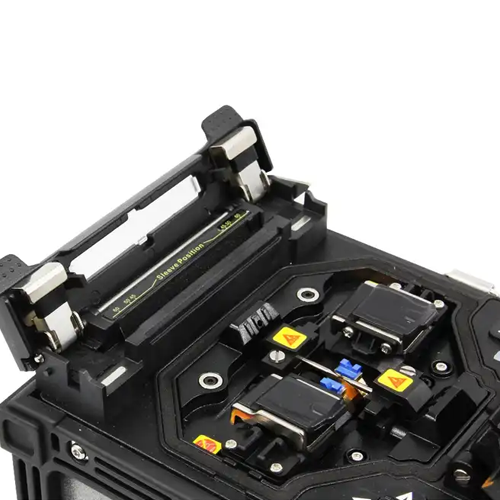

Emissions And Stack Fast Splicing Machine implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminium-magnesium alloy materials extensively. Compared with the old version, our start product lowers the size by 38%, the weight by 52%, and the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80%, and the reliability (MTBF) by 200%. You can get an unprecedented fusion splicing experience.
Features
- 4.3 in (10.9 cm) touchscreen LCD Monitor
- Small and light, easy to carry
- 4 motors accurate core-to-core alignment
- 7 s fast and stable splicing
- Automatic and real-time ARC calibration
- Heating temperature and time are both adjustable
- Automatic splicing and heating
- Apply to bare fiber, pigtails, drop cable, SOC etc
- Suitable for FTTx, FTTH, CATV projects etc
- 5200 mAh Li-battery, 250 cycles splicing and heating
Technical Specifications
| Cladding Diameter | 80 µm to 150 m |
| Coating Diameter | 160 µm to 1000 µm |
| Cleaved Length | 0.19 in to 0.62 in (5 mm to 16 mm) |
| Typical Splice | SM: 0.02 dB; MM: 0.01 dB; DS, NZDS, BIF: 0.04 dB |
| Return Loss | >60 dB |
| Splicing Program | 40 groups |
| Auto Heating | Available |
| Typical Splice Time | 7 s |
| Typical Heating Time | 26 s for 2.3 in and 1.5 in (60 mm and 40 mm) shrinkable sleeves |
| Fiber Magnification | 250 X (X or Y view), 125 X (X and Y View) |
| Viewing Display | Dual High Sensitivity Camera, 4.3 in (10.9 cm) 800 x 480 LCD Touch screen monitor |
| Data Storage | 4000 groups data records |
| Tension Test | 1.8 N to 2.25 N |
| Interface | GUI interface, easy operation |
| Battery Capacity | 5200 mAh Li-battery, 250 cycles splicing and heating |
| Power Supply | Adaptor, input: AC 100 V to 240 V (50 Hz or 60 Hz, Output: DC 11 V to 13.5 V) |
| Electrode Life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating | Altitude: 0 mi to 3.1 mi (0 m to 5000 m), Humidity: 0% to 95%, Temperature: 14 °F to 122 °F (-10 °C to 50 °C); Wind: 15 m/s |
| Dimension | 5.8 in x 4.7 in x 2 in (149 mm x 120 mm x 127 mm) |
| Weight | 4.38 lb (1.90 kg) |
