Overview

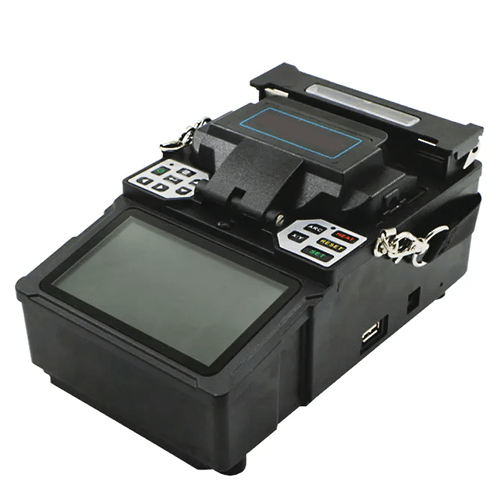

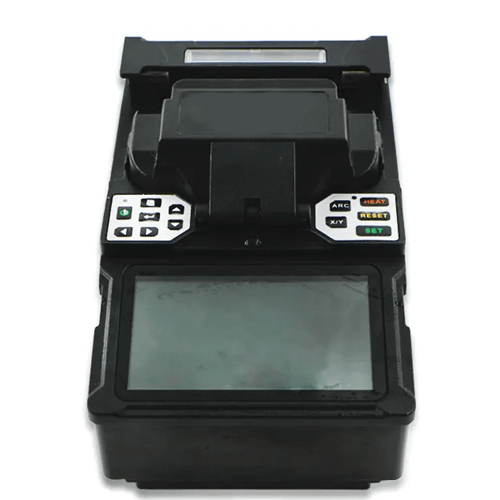

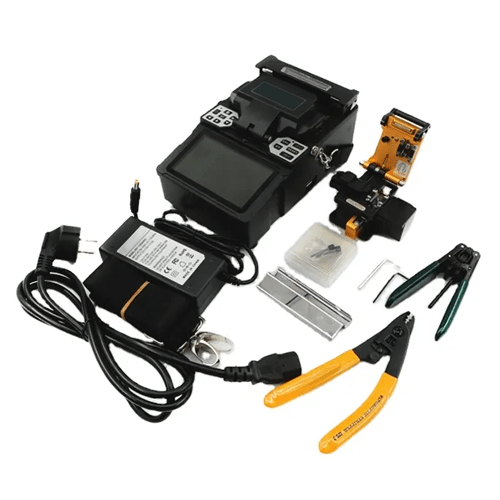

Emissions And Stack Fusion Splicer Mini Machine for SM MM Fiber Cable, fiber fusion splicer is a 4-motor fusion splicer with active V-groove design, it could adjust the fiber position more flexible and accurate, and it has very stable performance even in harsh environment. It is specially designed for FTTX or FTTH projects, it could also be used in heights conveniently.
Features
- 1 s boot up, 7 s splicing, 20 s heating
- Specially designed for FTTH projects
- 4 motors active V-groove design
- Small size and light weight, easy to carry
- Work bench windproof cover, fiber cleaver could be placed
- 3 in 1 multi-function clamps for naked fiber or pigtail or drop cable
- Inductive automatic heater, identifier fibers intelligently
- 20 s automatic heating
- Automatic heating, adjustable temperature, preset multiple modes
- The clamp has been optimized for multiple generations, and the clamping effect is good, and there will be no broken fiber or offset
- Large capacity battery
- 5200 mAh Li-battery, typical 250 cycles splicing and heating
Technical Specifications
| Network | None |
| Display Screen | 2 CMOS cameras, 4.3 in (10.9 cm) color LCD monitor |
| Records Storage | 5000 groups data and 100 group images |
| Loss Evaluation | Available |
| Tension Test | >2.2 N |
| Interface | GUI menu interface, easy for operation |
| Power Supply | Adapter, input: AC 220 V ±30 V (50 HZ or 60 HZ), output: DC 12 V ±2 V |
| Electrodes Life | More than 5000 ARC discharges, can be replaced conveniently |
| Terminal | USB 2.0 port, for uploading splicer results and upgrading software |
| Operating Conditions | Altitude: 0 mi to 3.1 mi (0 m to 5000 m), Humidity: 0% to 95%,Operating Temperature: -13 °F to 122 °F (-25 ℃ to +50 ℃),Storage Temperature: -40 °F to 176 °F (-40 ℃ to + 80℃),Wind speed: Max 15 m/s |
| Fiber Magnification | 250 X (X or Y view), 125 X (X and Y view) |
| Typical Heating Time | 20 s for 2.3 in x 1.57 in (60 mm and 40 mm) shrinkable sleeves |
| Typical Splicing Time | 7 s |
| Auto Heating | Available |
| Operate Mode | Automatic or Manual |
| Splicing Program | 40 groups |
| Fiber Cleaved Length | 0.19 in x 0.62 in (5 mm x 16 mm) (coating diameter <250 um), 0.62 in (16 mm) (coating diameter: 250 um to 1000 um) |
| Return Loss | >60 dB |
| Typical Splice Loss | SM: 0.03 dB, MM: 0.02 dB, DS: 0.05 dB, NZDS: 0.05 dB |
| Diameter Of Cladding | 160 μm to 900 μm |
| Diameter Of Coating | 80 μm to 150 μm |
| Applicable Fiber | SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) EDFA, others (including G.657) |
| Construction | Description |
| Dimension | 7.87 in x 4.84 in x 3.74 in (200 mm x 123 mm x 95 mm) |
| Weight | 3.5 Ib (1.60 kg) (including battery) |
