Overview

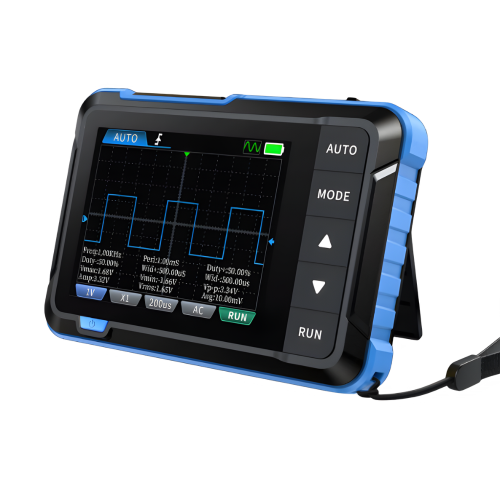

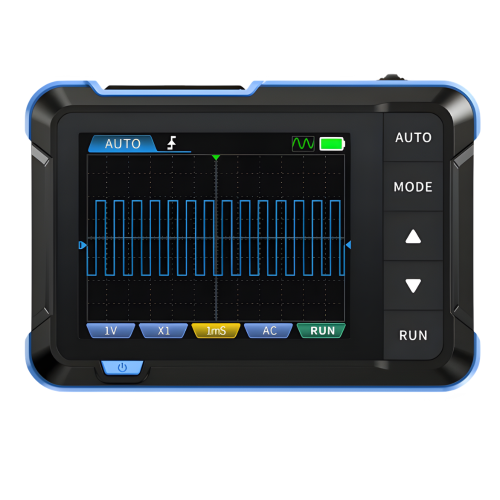

Emissions And Stack presents a highly practical and cost-effective handheld oscilloscope designed for maintenance and educational applications. Its intuitive design allows users to quickly display and analyze waveforms without complicated adjustments. The device is portable and easy to use, making it ideal for both fieldwork and educational purposes. With a clear HD LCD screen and efficient one-click functionality, it simplifies signal observation and measurement tasks. Its lightweight and compact structure ensure convenient handling, while built in features enhance versatility for a variety of applications. This oscilloscope combines practicality and efficiency, providing a reliable tool for professionals and learners who require a simple yet effective waveform analysis solution.
Features
- Highly practical handheld oscilloscope for maintenance and educational applications.
- Displays and analyzes waveforms quickly without complicated adjustments.
- Portable and lightweight design for convenient field and classroom use.
- Clear HD LCD screen ensures easy visualization of signals.
- One-Click functionality simplifies waveform observation and measurement.
- Built in features enhance versatility for various signal testing tasks.
- Reliable and efficient tool for professionals and learners alike.
Technical Specifications
| Channel Number | 1 |
| Structure | Handheld |
| Application | Voltage Measurement |
| Bandwidth | 1 MHz |
| Trigger Modes | Full range of triggering functions (Single, Normal, AUTO) for both periodic analogue and non-periodic digital signals |
| Sampling Rate | 5 MS |
| Vertical Sensitivity | 10 mV/Div to 10 V/Div |
| Time Base Range | 500 ns to 20 s |
| Pause Waveform | Yes |
| Voltage Range | X10: ±400 V (Vpp: 800 V) |
| Square Wave Calibration | Equipped with 1 kHz calibration square wave, probe calibration is easy and convenient |
| Sampling Mode | Real time Sampling |
| Built-In Signal Source | With Built in Signal Source |
| Display | 2.8-inch HD LCD (320 × 240) |
| Battery | Built in 1000mAh lithium |
| Operation Time | 4 hours fully charged |
| Dimensions | 3.90 in × 2.69 in × 0.77 in (9.9 cm × 6.83 cm × 1.95 cm) |
| Weight | 28.66 lb (13 kg) |
