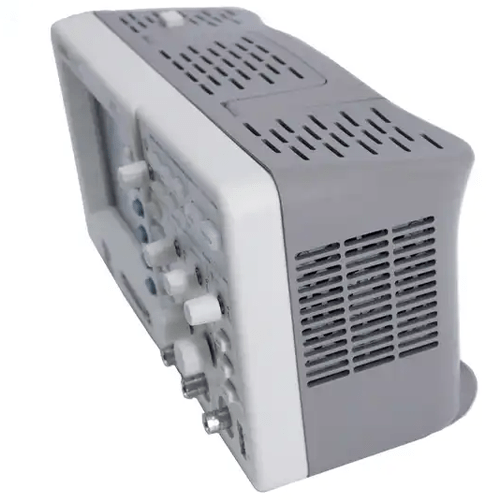

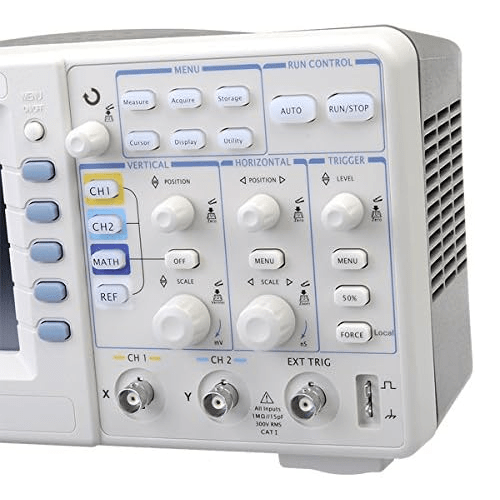

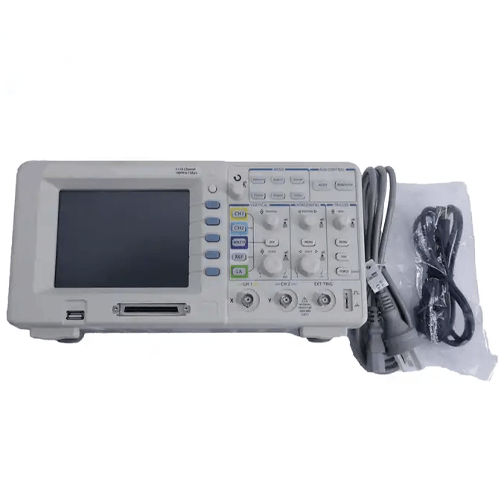

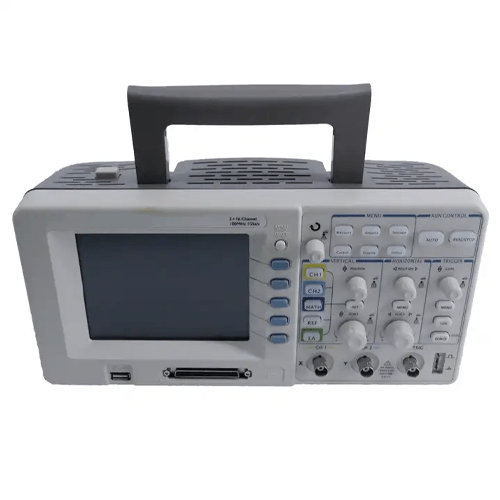

Name: Mixed Signal Oscilloscope with Logic Analyzer & 1GSa/s Sampling - Emissions And Stack -
SKU: EMSPELA-375

Features

A true mixed signal oscilloscope with 16channel Logic Analyzer (DS1000D)
1 GSa/s maximum Real-time Sample Rate and 1Mpts of memory depth
Bandwidth options: 50 MHz and 100 MHz
Extensive set of trigger modes including Edge, Video, Pulse Width, Slope, Alternate
64 k TFT Colour LCD, bright and vivid waveform display
Direct print to PictBridge compatible printers via USB Device interface
Compact design to save your desktop space

Technical Specifications

Bandwidth	100 MHz
Memory Depth	Single Channel: 1M; Double Channels: 500K
Channels	2
Real-time Sample Rate	Single Channel: 1 GSa/s; Double Channels: 500 MSa/s
Equivalent Sample Rate	25 GSa/s
Rise Time	1.2 ns
Input Impedance	1 M? \|\| 15 pF,50?
Sec or Div Range	2 ns/div to 50 s/div
Bandwidth	50 MHz
Phase Difference	±3°
Trigger Modes	Edge, Pulse, Video, Slope, Delay
Trigger Source	CH1, CH2, Ext, Ext/5, AC Line
Vertical Sensitivity	2 mV/div to 10 V/div
Vertical Resolution	8-bit
Input Coupling	DC, AC, GND
Input Max Voltage	300 V (DC + AC Vpp)
Scroll Range	500 ms/div to 50 s/div
Cursor Measure	Manual, Track, Auto
Math	+, -, ×, FFT
Storage	Built-in: 10 groups waveforms, 10 groups set up; USB: bitmap memory, CSV storage, wave set up
Interface	USB Device, USB Host, RS-232, P/F Out (Isolated)
Display	64K TFT Colour LCD (320 x 234)
Display Language	Multilingual User Interface
Power Source Voltage	100 V to 240V AC or 50 W Max
Size	11.93 in x 6.06 in x 5.24 in (303 mm × 154 mm × 133 mm)
Weight	Approximately 5.29 lb (2.4 kg)
