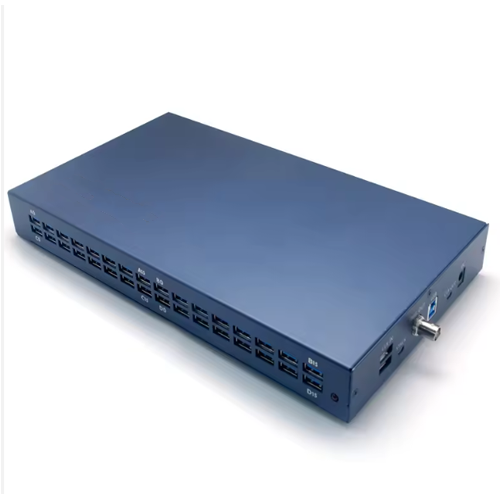

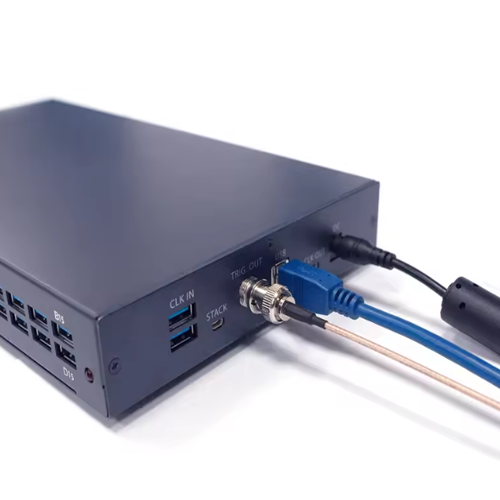

Name: Multi-Channel 1GHz Logic Analyzer with Advanced Triggering - Emissions And Stack -
SKU: EMSOULA-110

Features

High-speed sampling with 1 GHz internal and 200 MHz external frequency for detailed signal capture
Supports up to 64 acquisition channels with 4 Mb to 1 GB memory per channel
Offers advanced trigger modes: pattern, edge, pulse-width, and interval for precise data analysis
Equipped with over 120 free protocol decoders including I2C, SPI, UART, CAN, SVID, and eMMC
Features USB 3.0 interface for fast data transfer and backward compatibility with USB 2.0
Includes a low-voltage probe set with 190 kΩ input impedance and 4.3 pF low capacitance for minimal signal loading

Technical Specifications

Acquisition Channels	40 or 64 channels
Display & Interface	USB 3.0 (USB 2.0 compatible)
Sampling Frequency	Internal: 1 GHz External: 200 MHz (dual-edge)
Memory per Channel	4, 8, 16, 32, 64, 128, 256, 512 Mb, 1 GB
Trigger Channels	40 or 64
Trigger Types	Pattern, Edge, Pulse-width, Interval
Trigger Voltage	4 simultaneous levels, 1 per port
Trigger Delay	Yes
Trigger Sequence Levels	Up to 256
Trigger Pass Count	1 to 65,535
Protocol Triggers	I2C, I2S, SPI, UART, SVID, CAN 2.0B, eMMC
Protocol Decoders	120+ built-in free protocol decoders
eMMC/SD Decoder	Supported (optional high-speed probes required)
Optional Features	Channel folding, eMMC5.1/SD3.0 high-speed decode, long-time record up to 35 days
Transmission Rate (Max)	400 Mbit/s
DUT Bandwidth (Max)	200 MHz
Input Impedance	190 kΩ ±10%
Input Capacitance	4.3 pF ±2 pF
Input Voltage Range	0 V to 5 V
Phase Error	<3 ns
Auxiliary Cursors	Up to 250
Data Interfaces	USB 3.0, USB 2.0 compatible
Power Supply	AC 100 V to 240 V, 50/60 Hz DC Output: 9 V / 5.55 A
Operating Temperature	32 °F to 104 °F (0 °C to 40 °C)
Operating Humidity	≤80% RH
Dimensions	12.68 in x 7.09 in x 1.5 in (322 mm x 180 mm x 38 mm)
