| Use |
Transmission |
| Network |
Wireless LAN, 4g, GSM, 3G |
| Form Type |
Optical Transmission Product |
| Management |
TELNET, SNMP, WEB |
| Supports |
ALS, LFP |
| Multi-Rate Supports |
1Gbps to 10Gbps |
| Wavelength |
CWDM/DWDM |
| Material |
Metal |
| Power Consumption |
≤30 W |
| Function |

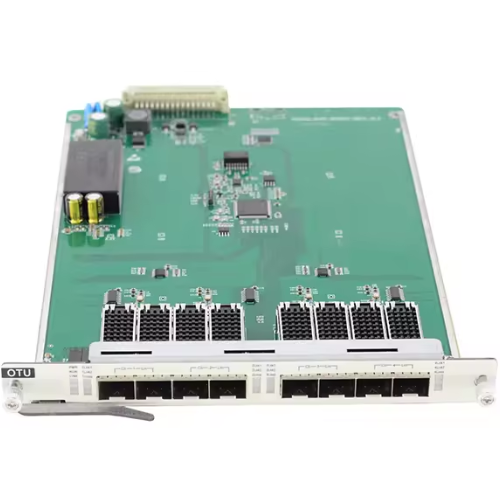

1.25G to 10G Quad Multi-Rate transponder, Converter/Repeater, 8SFP+ interfaces with 3R |
| Protocols |
Fiber Channel: 1/2/4/8/10Gbps or CPRI: 2/3/4/5/6/7 or LAN or WAN PHY: 1G/10G, SONET: OC-24, OC-48, OC-192, SDH: STM-16/64 |
| Client Side |
4 x SFP+ |
| Line Side |
4 x SFP+ |
| Technical Indicator |
Compliance with ITU-I standard |
| Center Wavelength |
CWDM: 1271 to 1611nm, DWDM: 1529.5~1565.50nm, 850nm/1310nm/1550nm |
| Data Rate (Gbps) |
Fiber Channel: 1/2/4/8/10Gbps, CPRI: 2/3/4/5/6/7, LAN or WAN PHY: 1G/10G Ethernet, SONET: OC-24, OC-48, OC-192, SDH: STM-16/64 |
| 3R Regeneration |
Re-amplification, Re-shaping, Re-timing |
| Optical Interface Type |
8xSFP+ |
| NMS |
TELNET, SNMP, WEB |
| Relative Humidity |
5 % to 95 % non-condensing |
| Power Consumption |
≤30 W |
| Size |
7.87 in x 10.23 in x 1.97 in (20 cm x 26 cm x 5 cm) |
| Operating Temperature |
0 ℉ -158 ℉ (-10 ℃ to 70 ℃) |
| Storage Temperature |
-40 ℉ to 176 ℉ (-40 ℃ to 80 ℃) |
