Overview

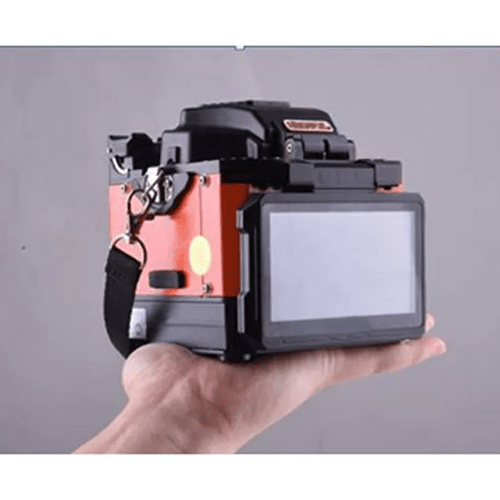

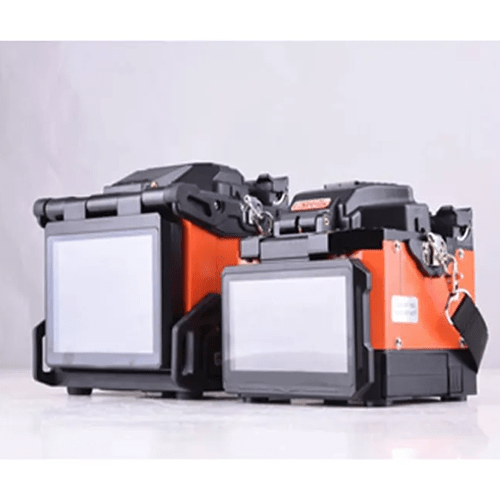

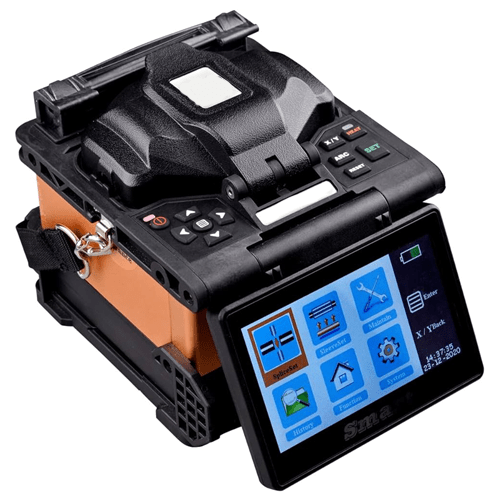

Emissions And Stack high efficiency splicers have the main function of the next generation fusion splicer: High Speed Splicing and Heating,8 seconds Rapidly Splicing, 18 seconds Quick Heating. They are suitable for smaller size; digital Imaging ensure High precision.
Technical Specifications
| Application Fiber | SM, MM, NZ-DS, EDF <pigtail, Cable |
| Average Splice Loss | 0.02 dB, (SM), 0.01 dB (MM), 0.04 dB (NZDS), 0.04 dB (EDF) |
| Return Loss | ≥60 dB |
| Cladding Diameter | 100 µm to 150 µm |
| Coating Diameter | 100 µm to 1000 µm |
| Applicable cable | FTTH Drop Cable |
| Cleave Length | 0.35 in to 0.6 in (9 mm to 16 mm) |
| Quick Splicing Time | 8 sec |
| Quick Heating Time | 18 Sec |
| Splicing Program | 50 groups |
| Heating Program | 10 groups |
| protection Sleeve Length | 1.5 in, 1.7 in, 2.3 in (40 mm, 45 mm, 60 mm) |
| Operating Conditions | 14 °F to 122 °F (-10 °C to 50 °C), 0% RH to 95% RH (Humidity), 3.10 mi (5 km) |
| Power Supply | AC adaptor: 100 V to 50 V Input Voltage, 50 Hz or 60 Hz; 12 V, 5 A output Voltage (DC) |
| Battery | Inner Lithium Battery: 11.1 V, 5200 mAh, up to 220 times splice and heat |
| Tension Test | 1.96 N to 2.25 N |
| Storage Of Splice Result | 6,000 groups of latest splice results |
| Terminal | USB for memorizing and updating, Mini-USB |
