Overview

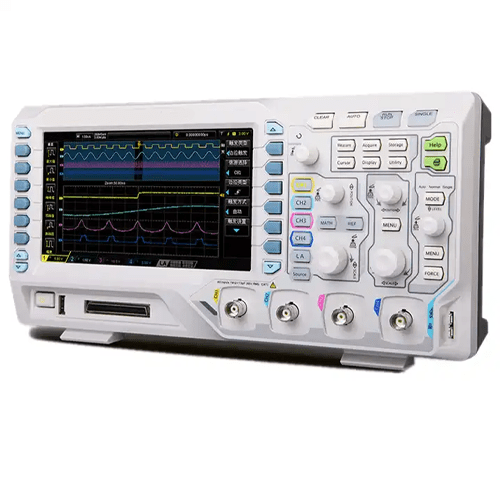

Emissions And Stack 4-channel digital oscilloscopes use the ultra-vision technology platform, which continues the characteristics of deep storage and high waveform capture rate and has an excellent cost performance advantage. This innovative series comes standard with a digital channel interface that can be upgraded to a full-featured MSO with the addition of an RPL1116 logic probe.
Features
- 4 Channels Standard, Expandable to 16 with MSO Upgrade
- 12 Mpts Storage Depth, Optional 24 M
- Hardware Waveform Recording and Playback Function
- Serial Bus Triggering and Decoding (RS232, I2C, SPI)
- Digital Fluorescent Display with Gray Level Capability
- Mixed Signal Analysis (Upgradable to MSO)
- Two 25 MHz Arbitrary Waveform Generators Included
Technical Specifications
| Bandwidth | 100 MHz |
| Channels | 4 channels |
| Interface | USB 2.0 |
| Storage Depth | 12 M |
| Sample Rate | 1 GSa/s |
| Display | 7 in (17.78 cm) TFT LCD |
| Size | 17.72 in x 9.84 in x 13.78 in (45 cm x 25 cm x 35 cm) |
| Weight | 13.23 lb (6 kg) |
