Overview

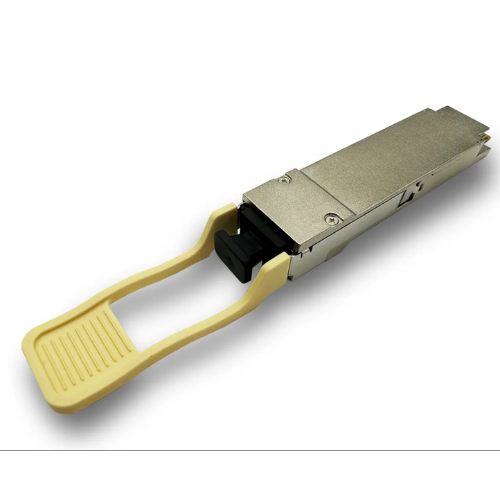

EMSSCB-121 is a Four-Channel, Pluggable, Parallel, Fiber-Optic transceiver for IEEE 802.3bm,100GBASE SR4 Applications, or 100G Gigabit Ethernet and InfiniBand and FDR/EDR Applications. The EMSSCB-121 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25.78Gbps operation for an aggregate data rate of 103.12Gbps 70m using OM3 fiber. These modules are designed to operate over multi-mode fiber systems using an 850nm VCSEL laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the module receptacle. It is one kind of parallel transceiver which provides increased port density and total system cost savings.
Product Features
- Four-channel full-duplex transceiver modules
- Transmission data rate up to 25.78Gbit/s per channel
- Up to 70m on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
- Low power consumption <2.5W
- Operating temperature 0℃ to 70℃
- 3V power supply voltage
- RoHS 6 compliant
- MPO connector receptacle
- Built-in digital diagnostic function
Applications
- IEEE 802.3bm 100GBASE SR4
- Proprietary High-Speed Interconnections
- Data center
Technical specifications
| Specification | Details |
| Data Rate | 100 Gbps |
| Transmission Distance | 328.08 ft (100 m) |
| Wavelength | 850 nm |
| TX Power | -8.4 dBm to 2.4 dBm |
| Receiver Sensitivity | < -7.2 dBm |
| Fiber Type | Multimode |
| Connector | MPO |
| Digital Diagnostic Monitoring (DDM or DOM) | Supported |
| Operating Temperature | 32 °F to 158 °F (0 °C to 70 °C) |
| Optical Source | VCSEL + PIN |
| Power Consumption | < 3.5 W |
| Supply Voltage | 3.3 V ± 5% |
| Size | 4.8 in x 0.72 in x 0.33 in (12.2 cm x 1.83 cm x 0.85 cm) |
| Weight | 1.31 oz (37 g) |
