Overview

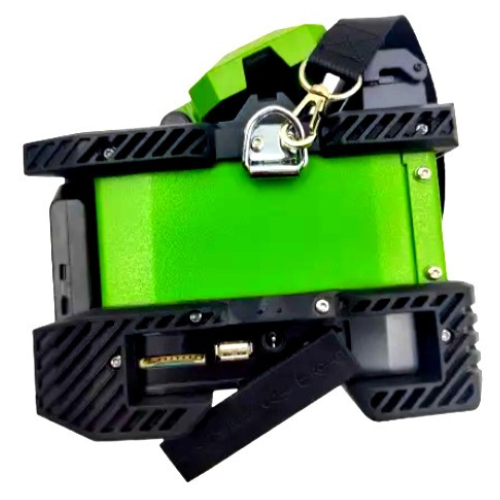

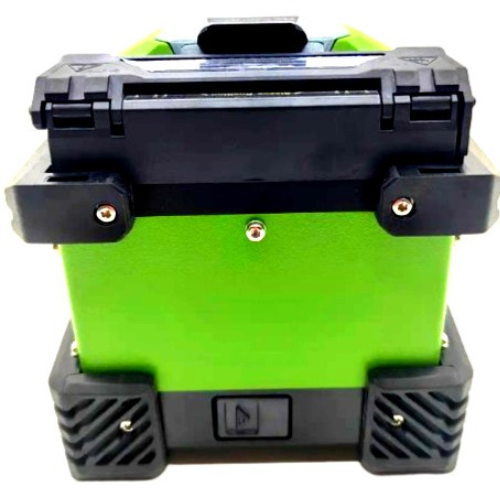

Emissions And Stack automatic heating fiber splicing for high precision is has rich functions and ultra low splice loss make the splicer adaptive to fiber splicing in various environments. Multiple fusion modes and heating modes are available to meet various customers’ demands. Fiber loading becomes more convenient and accurate thanks to the ceramic V groove of high precision, which is easy for clean and maintenance. The splicer is capable of dual directional fusion. The monitor is a touch screen with GUI for smooth operation. The modular pluggable lithium-ion battery with large capacity ensures long time field operations. The auto environmental compensation system greatly improves adaptability of the splicer to extreme environments to ensure your work smoothly and continuously.
Technical Specifications
| Alignment Method | Cladding alignment, Core alignment |
| Cladding | 80 μm to 150 μm |
| Coating Layer | 0.1 mm to 3 mm |
| Return Loss | Better than 60 dB |
| Heating Time | 18 s |
| Tension | 1.96 N to 2.25 N |
| Graphical Display | High performance 4.3 inch LCD |
| Magnification Time | 320 times or 88 times, 700 times |
| Fusion Records | 10000 groups or 64 images |
| Battery Capacity | 11.1V, 6800mAh |
| External Power | AC: 100 V to 240 V, 60 Hz, 0 A to 1.5 A DC : 10V to 15 V |
| Humidity | 0 % Rh to 95 % Rh |
| Temperature | -4 ℉ to 122 ℉ (-20 ℃ to 50 ℃) |
| Size | 4.72 in x 5.12 in x 6.06 in (12 cm x 13 cm x 15.4 cm) |
| Weight | 4.63 lbs (2.1 kg) |
