Overview:

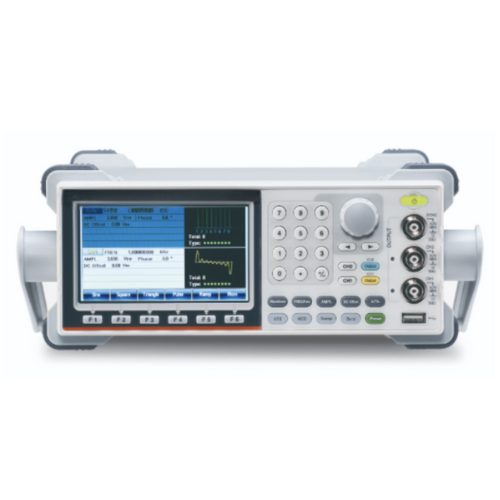

Emissions And Stack Arbitrary Function Generator series arbitrary function generators include 20MHz/30MHz single channel and dual channel models, designed to meet industry, scientific research, and education applications. In the design of isolated output, all output channels are earth ground isolation, which is suitable for test applications of floating circuit. For instance, connecting an AFG-101 with a power supply’s DC voltage, the maximum AC-DC cascaded output reaches +42V or -42V. Each channel of dual channel models can be operated independently or multi-units can simultaneously function without taking grounding reference into consideration. Applications are, for instance, the ignition control or transmission device of automotive electronics.
Features:
- 1uHz to 20 or 30MHz, 16-bit resolution with 1 mVpp to 10 Vpp amplitude. 1 or 2 channel (s)
- 250 MSa/s sampling rate for higher time resolution arbitrary waveforms
- 8M Points/channel standard waveform memory
- Input/output signal ground independent of housing and signal ground between channels also insulated.
- Synchronized phase operates up to 6 units and 12 channels
- Pulse waveform parameters can be set independently for more precise timing
- Harmonic signal generator
- Dual channel models support SUM modulation, coupling, tracking, and phase functions
- Built-in AM/FM/PM/FSK/PWM/SUM modulation, sweep and burst functions
- Provide USB/LAN/GPIB (optional) instrument control interface
- IQ baseband waveform output function
Technical Specifications:
| General Specifications | ||||
| Power Source | AC 100～240V , 50～60Hz | |||
| Power Consumption | 50VA | 85VA | 50VA | 85VA |
|
Operating Environment |
Temperature to satisfy the specification : 18 ~ 28∘C | |||
| Operating temperature : 0 ~ 40∘C | ||||
| Relative Humidity: | ||||
| ≤ 80%, 0 ~ 40°C | ||||
| ≤ 70%, 35 ~ 40°C | ||||
| Installation category： CAT Ⅱ | ||||
| Operating Altitude | 2000 meters | |||
| Pollution Degree | IEC 61010 Degree 2, Indoor Use | |||
| Storage Temperature | -10 ~ 70∘C, Humidity: ≤70% | |||
| Dimensions (WxHxD) | Bench Top : 265 (W) x 107 (H) x 374 (D) | |||
| Weight | Approx. 4kg | |||
| Models | AFG-101(A) | AFG-101(B) | AFG-101(C) | AFG-101(D) | |
| Channels | 1 | 2 | 1 | 2 | |
| Features | |||||
| I/O signal ground for the instrument chassis | Isolation | ||||
| Connector shells for channel output(s), Sync output, 10MHz REF Input, Mod Input and Mod output are isolated from the instrument’s chassis. Maximum allowable voltage on isolated connector shells is ±42 Vpk. (DC + AC Peak) | |||||
| Each of the signal ground of CH1 & CH2 | – | Isolated | – | Isolated | |
| Standard Waveforms | Sine, Square, Triangle, Ramp, Pulse, Noise, Harmonic | ||||
| Arbitrary Waveforms | |||||
| Sample Rate | 250 MSa/s | ||||
| Repetition Rate | 125MHz | ||||
| Waveform Length | 8M points | ||||
| Amplitude Resolution | 16 bits | ||||
| Non-Volatile Memory | Ten 8M waveforms (1) | ||||
| User define Output Section | Any section from 2 to 8M points | ||||
| Trigger | Infinite/Manual/External | ||||
|
Built-in Arbitrary Waveforms |
Sine, Square, Ramp, Sinc, Exp Rise, Exp Fall, DC, Pulse, Abstan, Havercosine, Sinever, Abssin, Haversine, Stair_down, Abssinehalf, N_pulse, Stair_UD, Ampalt, Negramp, Stair_up, Attalt, Rectpuls1, Stepresp, Diric_even, Roundhalf, Trapezia, Diric_odd, Sawtoot, Tripuls1, Gauspuls1, Sinetra, Dlorentz, Ln, Sqrt, Since, Lorentz, Xsquare, Gauss, Arccos, Arctan, Sech, Arccot, Arctanh, Sinh, Arccsc, Cosh, Tan, Arcsec, Cot, Tanh, Arcsin, Csc, Arcsinh, Sec, Barthannwin, Chebwin, Kaiser, Bartlett, Flattopwin, Triang, Blackman, Hamming, Tukeywin, Bohmanwin, Hann, Cardiac, EOG, EEG, EMG, PLETH, RESP, ECG1, ECG2, ECG3, ECG4, ECG5, ECG6, ECG7, ECG8, ECG9, ECG10, ECG11, ECG12, ECG13, ECG14, ECG15, LFPULSE, TENS1, TENS2, TENS3, IGNITION, SP, VR, TP1, TP2A, TP2B, TP3A, TP3B, TP4, TP5A, TP5B
Note: It is required to update the ARB data first prior to enabling both Medical (Cardiac, EOG, EEG, EMG, PLETH, RESP, ECG1, ECG2, ECG3, ECG4, ECG5, ECG6, ECG7, ECG8, ECG9, ECG10, ECG11, ECG12, ECG13, ECG14, ECG15, LFPULSE, TENS1, TENS2, TENS3) and AutoElec (IGNITION, SP, VR, TP1, TP2A, TP2B, TP3A, TP3B, TP4, TP5A, TP5B ) waveforms. |
||||
|
I Q Waveforms |
Source: Random, Fixed Pattern
Type: ASK, MSK, FSK, 2FSK, 4FSK, 8FSK, BPSK, QPSK, DQPSK, OQPSK, pi/4 – QPSK, pi/4 – DQPSK, 8PSK, 16APSK, 32APSK, 16QAM, 32QAM, 64QAM |
||||
| Frequency Characteristics | |||||
| Sine / Square | 1uHz to 30MHz | 1uHz to 20MHz | |||
| Pulse | 1uHz to 25MHz | 1uHz to 20MHz | |||
| Triangle / Ramp | 1uHz to 1MHz | ||||
