| Measurement parameter |
L, C, R, | Z|, D, Q, X, ESR, θ(Deg), θ(Rad) |
| Measurement frequency |
100 Hz, 120 Hz, 1 kHz, 10 kHz |
| Basic measurement accuracy |
0.1 % |
| Test signal level |
0.1 V, 0.25 V,0.3 V,0.5 V,1 V |
| Equivalent circuit |
Series, Parallel |
| Math function |
Percentage deviation |
| Range method |
Automatic, hold, manual selection |
| Trigger method |
Internal, manual, external, bus |
| Measurement Speed (≥1kHz) |
Fast speed the fastest 30 times or sec, medium speed 10 times or sec, slow speed 3 times or sec |
| Average times |
1 to 255 |
| Delay time |
0 sec to 60 sec, 1 ms step |
| Calibration function |
Open circuit or short circuit or load |
| Test end configuration |
Five ends |
| Display method |
Direct reading, Δ%, V or I (Measured voltage or current monitoring) |
| Display |
Main and secondary parameter display 5 bits, 4.3 in (10.9 cm) true color LCD display |
| Output resistance |
Optional 30 Ω & 100 Ω |
| Display range of |Z|, R, X, ESR |
0.1 m Ω to 99.999 M Ω |
| Display range of C |
0.01 pF to 99999 µF |
| Display range of L |
0.01 µH to 99999 H |
| Display range of D |
0.0001 to 9.9999 |
| Display range of Q |
0.0001 to 9999.9 |
| Display range of θ(Deg) |
-179.99° to 179.99° |
| Display range of θ(Rad) |
-3.1416 to 3.1416 |
| Display range of Δ % |
-999.99 % to 999.99 % |
| Comparator function |
5 files sorting function (only UC2852) |
| Memory |
More than 100 groups of internal setting files for storage or call, more than 500 groups of test files are expanded by U disk |

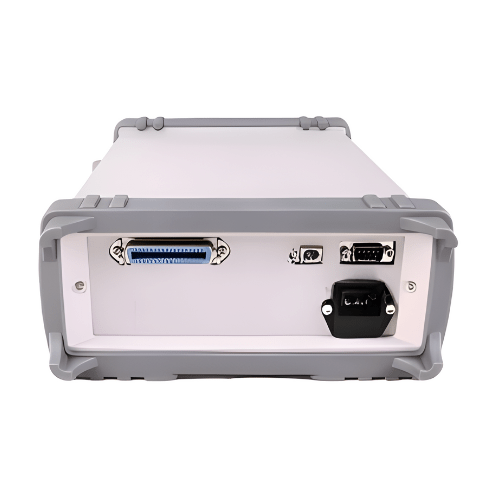

| Interface |
Standard RS 232C, HANDLER, USB HOST, USBCDC, USBTMC, headphone interface, optional GPIB |
