Overview

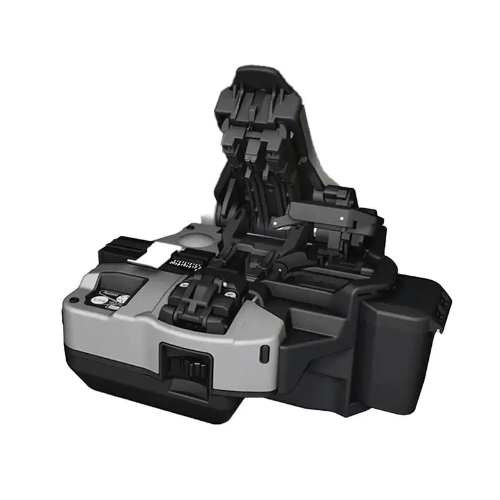

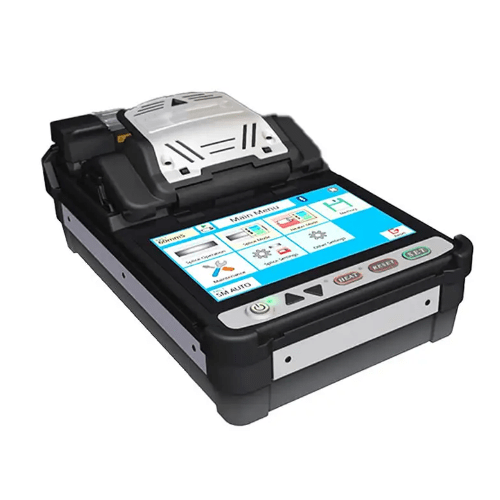

Emissions And Stack clad alignment fiber fusion splicers have one of the main causes of high splice losses is bad cleave end face quality. They analyse the condition of both l and r cleave end faces and apply optimal fusion control. This new technology improves splice losses significantly and greatly reduces the need for rework. Fusions are easily affected by changes in the environment. They use real-time fusion parameter control by analysing the fiber brightness intensity during splicing. This contributes to stable, low loss splice results. The fiber cleavers are equipped with wireless data connectivity. This capability allows automatic cleaver blade rotation when the judges the blade is worn. They display the remaining blade life and inform the user when a blade height change, blade position change, or new blade is required.
Features
- Active Fusion control by cleave condition
- Active Fusion control by fiber brightness
- Active Blade rotation by motor
- Active Blade life management
- 3 to 1 tool less Electrodes replacement
- 3 to 2 User replaceable blade and rubber clamps
Technical Specification
| Fiber Alignment Method | Active clad alignment |
| Fiber Count Can Be Spliced. | Single fiber |
| Applicable Fiber | Single mode optical fiber |
| Fiber Type | multi-mode optical fiber |
| Cladding Dia | Approx. 125 μm |
| Sleeve Length | Max. 0.23 in (6.0 mm) before shrinking |
| Fiber Tensile Test Force | Approx. 2.0 N |
| Electrode Life | Approx. 5000 splices |
| Altitude | Max. 3.10 mi (5 km) |
| Temperature | Operate: -50 ֯F to 122 ֯F (-10 ֯C to 50 ֯C),Storage: -104 ֯F to 176 ֯F (-40 ֯C to 80 ֯C),
Operate: 0 % to 95 % RH non-condensing, Operate: 0 % to 95 % RH non-condensing |
| Humidity | Storage: 0 % to 95 % RH non-condensing |
| AC Adaptor | AC 100 V to 240 V |
| Input | 50 Hz or 60 Hz, Max. 1.5 A |
| Dimensions H | Approx. 5.15 in (131 mm) without projection |
| Dimensions W | Approx. 7.91 in (201 mm) without projection |
| Dimensions D | Approx. 3.11 in (79 mm) without projection |
| Weight | Approx. 2.87 lbs (1.3 kg) including battery |
