Overview

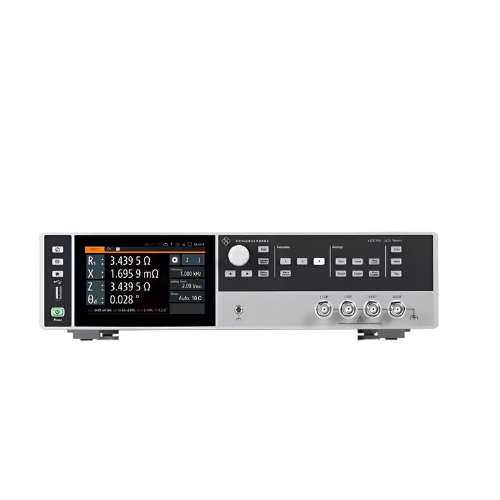

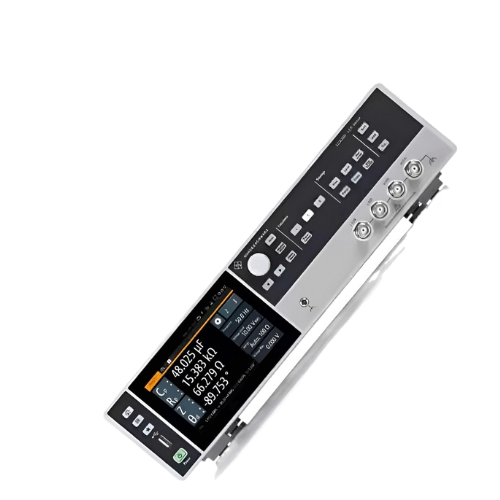

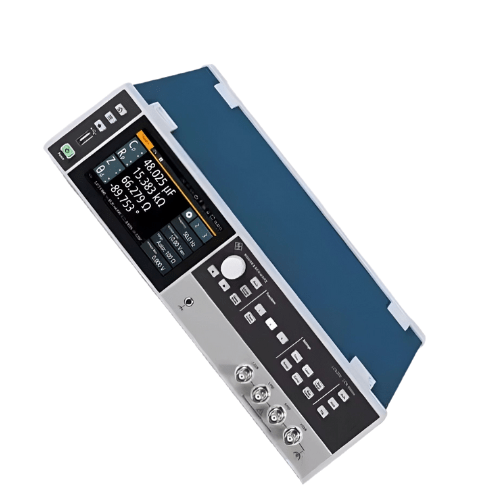

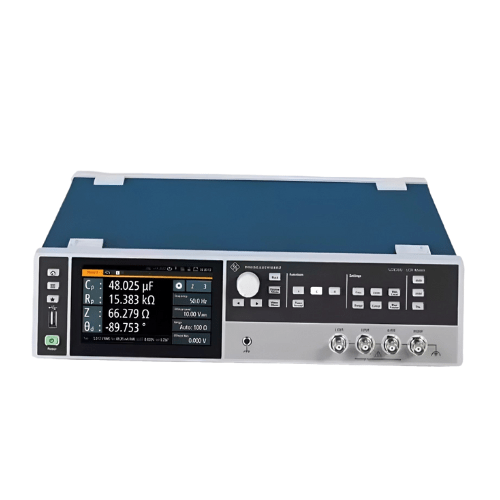

Emissions And Stack Component Testing Equipment LCR meter is versatile, extremely accurate and performs measurements quickly. They are ideal for challenging applications in research, development and production. Two instrument models and various options cover applications with a test signal frequency of up to 10 MHz. Internal and external bias functions, comprehensive analysis options and versatile test fixturesexpand the wide range of possible applications. Measurement and analysis for most components and materials. It is wildly used in product R&D, component incoming inspection and online products.
Features
- Fast, accurate and versatile
- Selectable frequency range
- Test signals for all requirements
- DC bias
- Measurement functions
- Data logging function
- High resolution touch screen
- Graphical representation of models
- Save and recall instrument settings
Technical Specifications
| Frequency range | 4 Hz to 10 MHz |
| Basic accuracy | ± 0.05 % |
| Phase measurement | ± 0.03 ° |
| DC Bias | 40 V |
| Maximum power consumption | 60 W |
| DC bias current (internal) | 0 mA to 200 mA |
| Internal bias voltage | 0 V to 10 V |
| External DC bias voltage | input 0 V to +40 V |
| Source impedance | 100 Ω, 10 Ω |
| Measurement range | 10 mΩ to 100 mΩ |
| Temperature | 41 °F to 104 °F (5 °C to 40 °C) |
| Dimension | 14.25 in x 3.9 in x 14.06 in (362 mm x 99 mm x 357 mm) |
| Weight | 5.59 lb (2.7 kg) |
