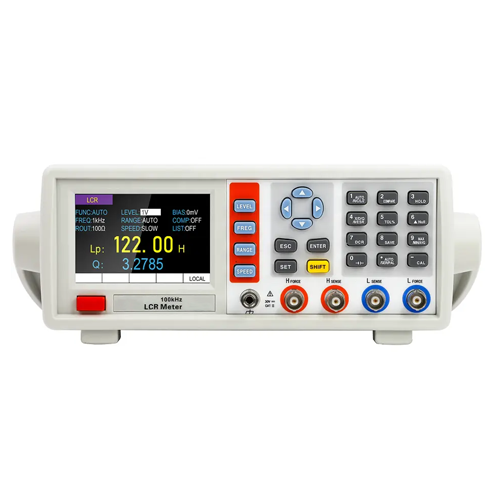

Overview
LCR digital bridge is designed using automatic balance bridge principle component parameter analyzer, the tests of 10 Hz to 100 KHz bandwidth, frequency adjustable, 0.2% of the basic classification function provided by the accuracy of measurement and instrument for the vast majority of components and materials to provide accurate and complete the survey and analysis, is widely used in product research and development, components such as incoming inspection, product online applications.
Features
- Measuring frequency 10Hz to 100 KHz, 1 Hz step continuously adjustable
- Test level 10 to 2000 mv, 1 mv step continuously adjustable

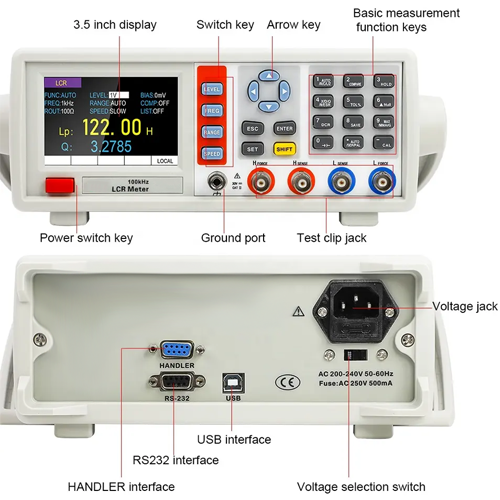

Support dc resistance (DCR), electrolytic capacitor measurement - The internal bias voltage output 10 mv to 1500 mv, 3.5-inch TFT display, five shows
- Communications: USB Device, RS232 (or 485), Handle, GPIB (optional), USB Host (optional)
- Data record function (maximum, minimum, average)
- Support SCPI communication protocol
- Provide the system Settings, can according to need to configure the Chinese or English, buzzer, screen brightness, etc.
- Basic measurement accuracy of 0.2%
- Manual and automatic range
- With open circuit and short circuit calibration function
- Comparator separation (5), alarm function
Technical Specifications
| Warranty: | 1 year |
| Customized support: | OEM, ODM, OBM |
| Product name: | Digital LCR Meter |
| SIZE: | 10.43 in x 4.13 in x 12.01 in (265 mm x 105 mm x 305 mm) |
| Weight: | 4.63 lb (2.1 kg) |
| Frequency: | 10 KHz to 20 KHz Continuously adjustable |
| Accuracy: | 0.2 % |
| Power consumption: | <10 W |
| Impedance: | 30 Ω or 100 Ω |
| Power Voltage: | 220 V AC / 50Hz ± 10 %, OR 110 V AC (optional) |
