Overview

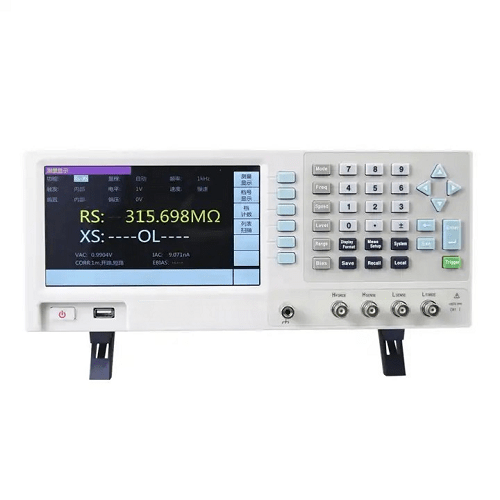

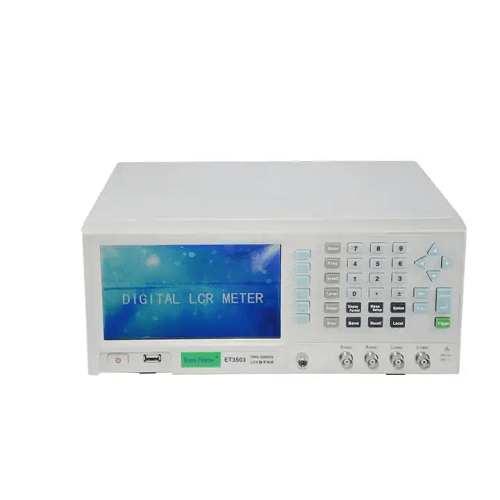

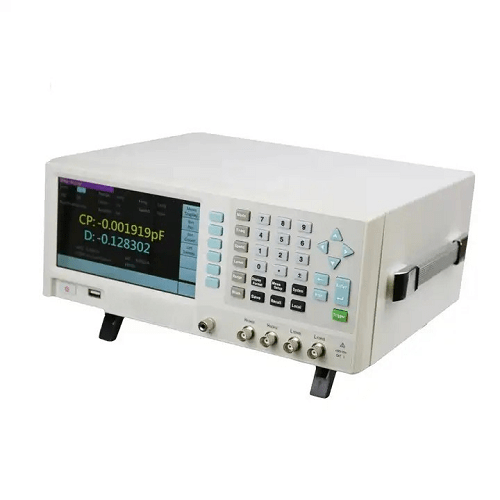

Emissions And Stack digital LCR function generators are high-precision component parameter analyzers making use of automatic balancing bridge principle, featuring 10 Hz to 1 MHz testing bandwidth, continuously adjustable frequency, 0.05% of basic measuring accuracy, automatic level control, list scanning and position counting, which can provide accurate and complete measurement and analysis for most components and materials, so it is wildly used in product R&D, component incoming inspection and online product sorting.
Features
- 0.05% basic accuracy
- A maximum of 200 time/s measuring speed
- Internal programmable DC bias voltage -2 V to +2 V
- Support external DC voltage applied – 60 V to +60 V
- Support external current source
- 10-point list scanning test
- 10-grade sorting and counting
- 100 groups of correcting data
- 7 in (17.78 cm) LED screen
Technical Specification
| Frequency Resolution | 1 mHz |
| Frequency Resolution Accuracy | 0.01% |
| Test Signal Voltage Range | 0 Vrms to 2 Vrms |
| Voltage Resolution | 1 mV |
| Voltage Resolution Accuracy | 5% + 5mV |
| Test Signal Current Range | 100 μArms to 20 mArms |
| DC Bias Voltage Source | Internal:- 2 V to +2 V, Voltage Bias-20 mA to +20 mA Current BiasExternal:- 60 V to +60 V Voltage Bias |
| Internal Resistance of Signal Source | 30 Ohm or 100 Ohm, selectable |
| Basic Accuracy | 0.05% |
| Frequency | 10 Hz to 100 KHz |
| Display | 17.78 cm (7 in) LED display screen |
| Display Resolution | 800 x 480 |
| Power Voltage | 220 V.AC/50 Hz ±10% |
| Power Consumption | <20 W |
| Service Environment | 32 °F to 104 °F (0 °C to 40 °C) |
| Size | 12.99 in x 11.22 in x 5.35 in (330 mm x 285 mm x 136 mm) |
| Weight | 7.93 lb (3.6 kg) |
