Overview

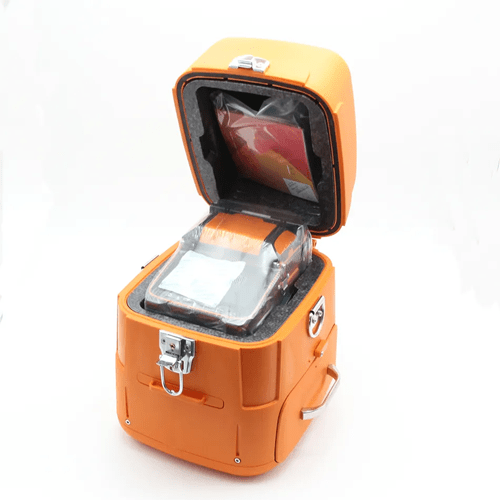

Emissions And Stack fiber fusion splicer uses the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machines in the market; with 5 in (12.7 cm) 800 pixels x 480 pixels HD screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of the operating platform reflects humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable, and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.
Features
- Six motors
- Core alignment
- Industrial quad-core chip CPU
- 5 seconds fast splicing
- 15 seconds fast heating
- 26 PATENT RESULTS
- 10 languages to switch freely
Technical Specification
| Fiber alignment | Core or cladding alignment or Manual alignment |
| Splicing time | 5 s |
| Heating time | 15 s |
| Heating mode | Automatic heating（Preheating） |
| Focus mode | Six motors Auto focus |
| Applicable Fibers | SM (G.652 & G.657), MM（G.651, DS (G.657, NZDS（G.655） |
| Splice Loss | 0.025 dB（SM), 0.01dB（MM), 0.04dB（DS or NZDS） |
| Control technology | Real-time control and calibration of fusion ARC |
| Return loss | Better than 60 dB |
| Fiber diameter | Cladding Diameter：80 μm to 150 μm Coating Diameter：100 μm to 1000μm |
| Fiber Cleave Length | Coating less than 250 µm：0.315 in (8 mm) to 0.63 in (16 mm) Coating less than 250 μm to 1000 µm: 0.63 in (16 mm) |
| Software updates Length | Automatically update, Update by a key |
| Boot time | 1 s |
| Language Setting | 10 languages to switch freely |
| Tension Test | Standard 2 N |
| Fiber holders | 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
| Magnification | 300 for X or Y view, 150 for X or Y view |
| Screen | 5 in (12.7 cm) TFT color display |
| Splicing Mode | Normal or high precision splicing |
| Splicing method | Fully automatic、 Step by step splicing |
| Splicing record storage |
Synchronize to the phone, the server to cloud storage unlimited |
| Built-in battery | 7800 mA high-capacity lithium battery, charging time ≤3.5 hrs, continuous splicing and heating about 260 times |
| Power supply | Input AC 100 V to 240 V 50 or 60 Hz, Output DC 13.5 V or 4.8 A
the current power mode can be identified Real-time detection of battery power |
| Operating Conditions |
Temperature: 5 ° F to 122 °F (-15 ° C to +50 ° C) Humidity: <95% RH (no condensation)
Working altitude: 0 mi (0 m) to 3.11 mi (5000 m) Resist max. wind speed: ≤15 m/s |
| Shrinkable tube | 2.36 in (60 mm), 1.97 in (50 mm), 1.57 in (40 mm), 0.98 in (25 mm) |
| Product protection | Waterproof, dust proof, shock-resistant |
