Overview

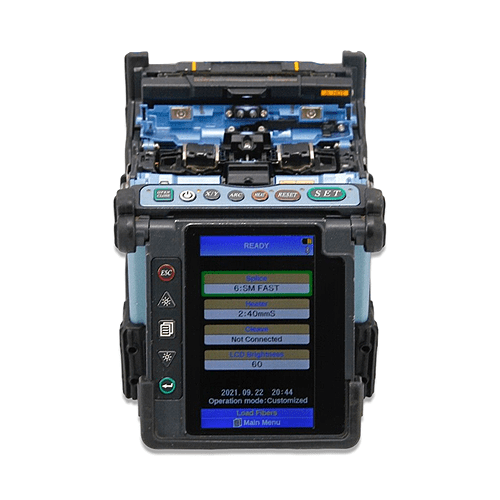

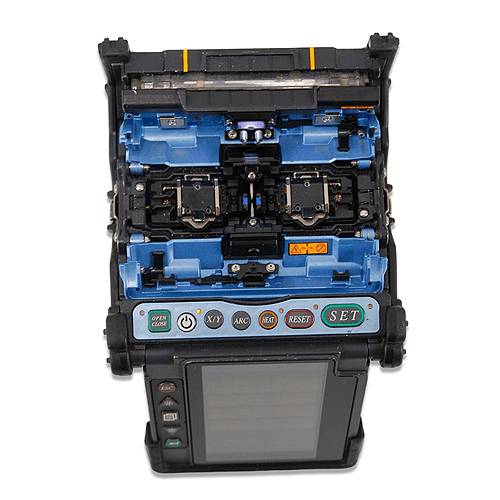

Emissions And Stack fiber fusion splicer optic equipments have provide active core alignment splice loss performance while utilizing conventional wind protectors and tube heater designs. As an alternative to the fully automated core alignment model, include auto start features for both the splicing and tube heating processes that minimize the steps necessary to process splices. With a shrink time of 23 seconds with standard splice sleeves, they ensure a high level of productivity. Incorporating the proven ruggedized features pioneered by Fujikura, durability is greatly enhanced by mirrorless optical systems and “severe impact resistant” monitors. Battery capacities are 200 splices or shrinks. The transit cases double as built in or mobile workstations and make splicing easier than ever.
Features
- 5,000 splices electrode life
- 23 second tube heating time with standard sleeves
- Fully ruggedised for shock, dust and moisture
- Li-ion battery with 200 splices or shrinks per charge
- 016 ft (5 mm) cleave length for splice on connector or small package needs
- Sheath clamp or fibre holder operation
- Internet software upgrades

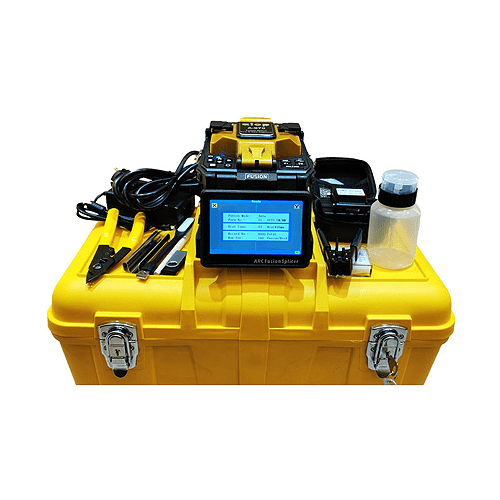

- Multi-function transit case with integrated workstation
- Optional non wireless model available
Technical Specification
| Cladding Diameter | 3.14 in to 5.90 in (80 mm to 150 mm) |
| Power Supply | 100 V to 240 V AC |
| Wind Protection | Maximum wind velocity of 49.21 in (15 m) per sec (34 mph) |
| Coating Diameter | 3.93 in to 39.37 in (100 mm to 1000 mm) |
| Fiber Cleave Length | 0.19 in to 0.63 in (5 mm to 16 mm) |
| Splicing Modes | 100 preset and user programmable modes |
| Typical Splice Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS) and 0.04 dB (NZDS) |
| Return Loss | >> 60 dB |
| Typical Splice Time | 6 s ULTRA FAST 7 sec SM FAST, 10 s SM AUTO |
| Typical Tube Heating Time | 23 s |
| Tension Test | 1.96 N to 2.25 N |
| No. Of Splice Per Heating Per Battery Full Charge | Typical 200 cycles with BTR-09 |
| Electrode Life | 5000 splices |
| Temperature | 50 ֯ F to 122 ֯ F (-10 °C to 50°C) |
| Weight | 5.5 lbs (2.5 Kg) |
| Dimensions | 1.81 in x 6.25 in x 5.90 in (46 mm W x 159 mm D x 150 mm H) |
