Features
- Chinese or English dual system
- 7 s welding
- 18 s heating
- Small welding
- Attenuation

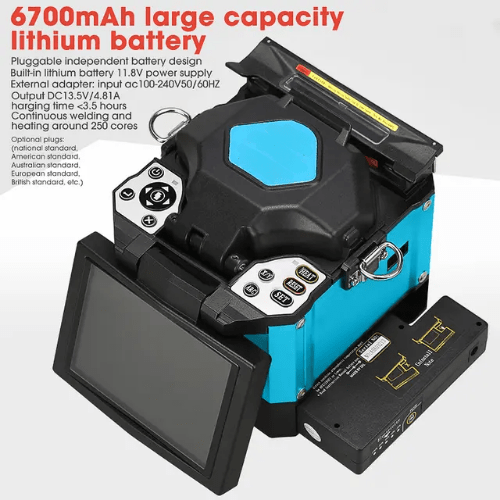

- Large capacity Li battery
- 3 in 1 fixture
Technical specifications
| Optical fiber clamp | Multi-functional clamp, suitable for: optical cable bare fiber jumper pigtail leather cable |
| Magnification | 400 times (x-axis or y-axis) |
| Heat shrinkable sleeve | 2.36 in (60 mm), 1.57 in (40 mm) and a series of micro shrink casings |
| Display | 5.0 in (12.7 cm) TFT color LCD display can be flipped, convenient for two-way operation |
| External interface | USB interface, convenient for data download and software update |
| Fusion mode | 17 use modes |
| Heating mode | 9 use modes |
| Splice loss Storage | 5000 update connection results saved in built-in memory |
| Built in battery | Continuous welding and heating for no less than 200 times |
| Power supply | Built in lithium battery 11.8 V power supply, charging time <3.5 hrs ;External adaptation, input AC 100 V to 240 V at 50 Hz or 60 Hz, output DC 13.5 V at 4.81 A |
| Battery Save | 15% lithium battery power can be saved in typical environment |
| work environment | Under typical environment, 15% of lithium battery power can be saved.Temperature: 4 °F to 122 °F (- 10 °C to + 50 °C),
Humidity: <95% RH (no condensation), Working altitude: 0 mi to 3.011 mi (0 m to 5000 m), maximum wind speed: 15 m/S |
| Boundary dimension | 6.22 in x 5.12 in x 6.14 in (158 mm x 130 mm x 156 mm) |
| Weight | 3.9 lb (1.77 kg) (excluding battery)4.72 lb (2.14 kg) (including battery) |
