Overview

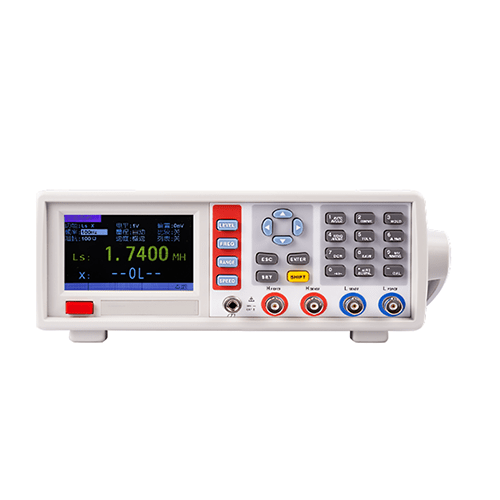

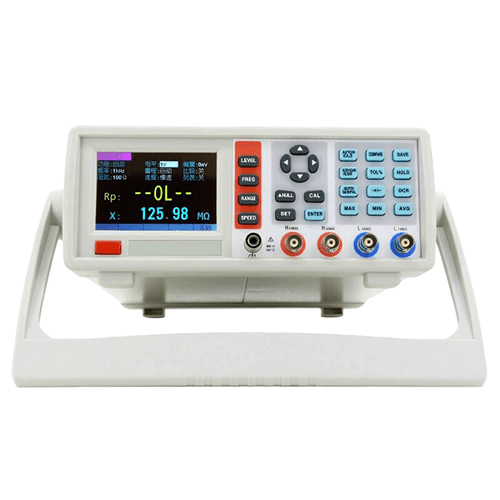

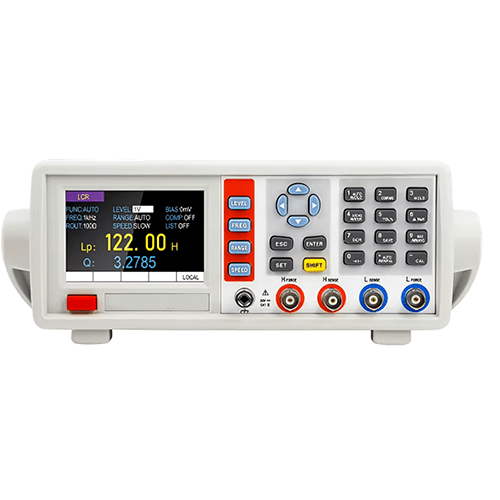

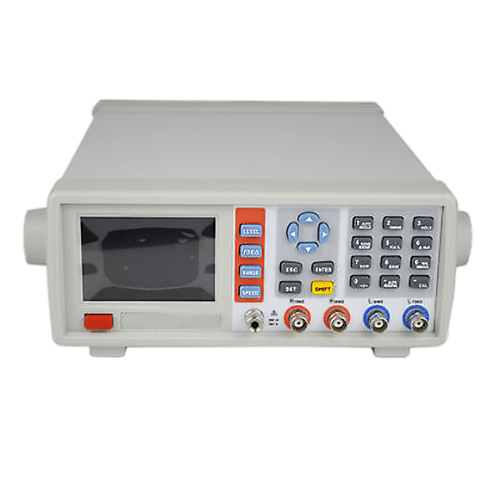

Emissions And Stack frequency adjustable benchtop lcr meter is designed using automatic balance bridge principle component parameter analyser, the tests of 10 Hz to 100 KHZ bandwidth, frequency adjustable, 0.2% of the basic classification function provided by the accuracy of measurement and for the vast majority of components and materials to provide accurate and complete the survey and analysis, is widely used in product research and development, components such as incoming inspection, product online applications. Low effective, open collector output, Opto-couplers isolation. Opto-couplers isolation DC power supply voltage supported by power pin 3 V to 25 V.
Features
- Measuring frequency 10 Hz to 100 KHZ
- 1 Hz step continuously adjustable
- Test level 10 mv to 2000 mv, 1 mv step continuously adjustable
- Support dc resistance (DCR), electrolytic capacitor measurement
- The internal bias voltage output 10 mv to 1500 mv
- 3.5 in (8.8 cm) TFT display, five shows
- Communications USB Device, RS232 (or 485), Handle
- GPIB (optional), USB Host (optional)
- Data record function (maximum, minimum, average)
- Support SCPI communication protocol
- Provide the system Settings
- Can according to need to configure the Chinese or English
- Provides buzzer, screen brightness
- Basic measurement accuracy of 0.2 %
- Manual and automatic range
- With open circuit and short circuit calibration function
- Comparator separation (5), alarm function
Technical Specifications
| Display Screen | 3.5 in (8.8 cm) TFT LCD screen |
| Testing Frequency | 10 KHz to 100 KHz Continuously adjustable, a step of 1 Hz |
| Number Of Display Digits | Principal parameter 5-digit, Secondary parameter 5 digit |
| Measured Parameter | Principal parameter L or C or R or Z Secondary parameter X or D or Q or θ or ESR |
| Measurement Range | L 0.001 µH to 99999 H, C 0.001 pF to 99.999 mF, R 0.0001 Ω to 99.999 MΩ |
| Basic Accuracy | 0.2 % |
| Measuring Display Speed | 2 time or sec (slow), 4 times or sec (medium), 8 time or sec (fast) |
| Internal Bias | 0 mV to 1500 mV adjustable, at a step of 1 mV |
| Testing Level | Six fixed level (0.1 V, 0.3 V, 0.6 V, 1 V, 1.5 V, 2 V) |
| Signal Source Output Impedance | 30 Ω, 100 Ω |
| Calibration Function | Open circuit calibration, short circuit calibration |
| Screening Function | The limit range of screening can be set to -50 % to 50% and the fixed points are 1 %, 5 %, 10 % and 20 % |
| Comparator | 5 groups sorting,3 groups of qualified setting, one group of unqualified setting, one group of auxiliary setting |
| Power Voltage | 220 V AC or 50 Hz ± 10 %, OR 110 V AC or 50 Hz ± 10 % |
| Power Consumption | <10 W |
| Dimensions | 10.4 in x 4.1 in x 12.0 in (265 mm x 105 mm x 305 mm) |
| Weight | 4.6 lb (2.1 kg) |
