Overview

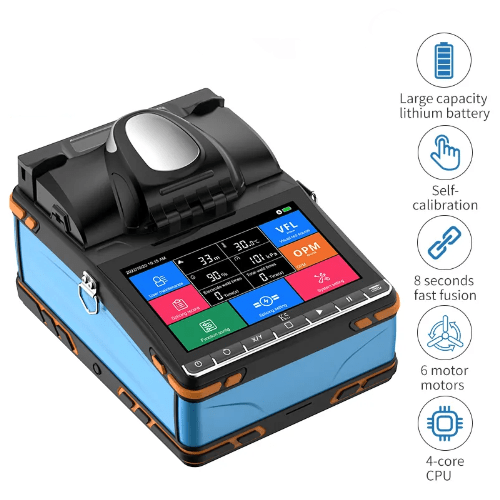

Emissions And Stack FTTH fiber fusion splicers are new generations of intelligent automatic fiber optic fusion splicing machines with 6 motor core alignment technology and automatic focus. They are fully capable of ftth, security monitoring, and other fiber optic cable fusion splicing projects. the machines adopt industrial 4 core CPUs, fast response times, using 5.5 in (139.7 mm) high-definition touch screens, Ui operation graphical interfaces that are simple and intuitive. They offer 6 seconds of extremely fast fiber core alignment fusion, and in fast mode, 13 seconds of heating, increasing the efficiency of the work by 50 % compared to ordinary fusion machines. They come with built in 10 mw red light pens, optical power meters, 7800 mAh high-capacity lithium batteries, and in a fully charged state, can be used to fuse and heat about 240 cores. The new generations of optical fiber fusion splicers will bring you reliable and comfortable experiences.
Features
- Large capacity lithium battery
- Self-calibration
- 8 seconds fast fusion
- 6 motors
- 4 core CPU
- Waterproof
- Multiple soft rubber protection layer at the edge to effectively machine collision damage
- 7800 mAh Li ion battery can charge cell phones, Lighting
- 3.5 hours fast Charging
Technical Specifications
| Product Name | Fiber Optic Fusion Splicer |
| Function Port | OPM, VFL |
| Motor | 6 motors |
| Battery Capacity | 7800 mAh |
| Alignment Method | core to core |
| Fiber Type | Single Fiber Single Mode |
| Splicing Time | Fast Mode 6 Sec |
| Heating Time | Fast Mode 13 Sec |
| USB Port Output | 5 V or 500 mA |
| Operating Temperature | 50 ֯ F to 122 ֯ F (10 ֯ C to +50 ֯ C) |
