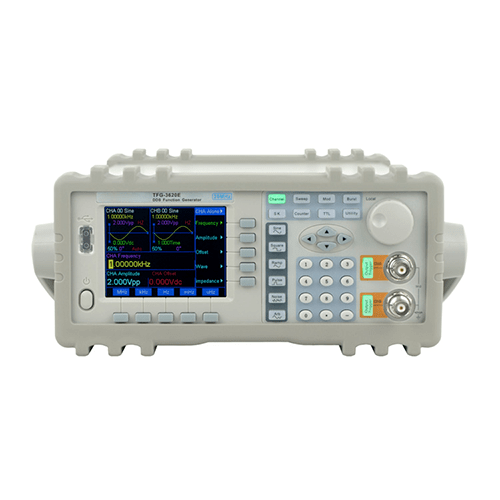

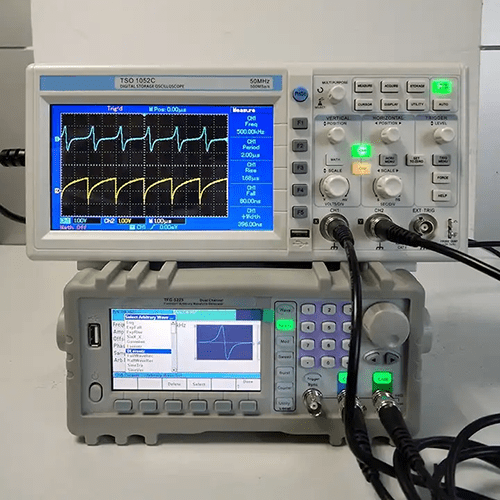

Features
- Frequency range 1 μHz to 25 MHz or 40 MHz or 60 MHz
- Independent output channels at same
- Frequency range for main waveforms
- 5 in (11.43 cm) TFT LCD display
- output amplitude 1 mVpp (50 Ω), total distortion 0.2 %
- Sampling rate 150 MSa/s
- Vertical resolution 14 bits, waveform length 16k points
- 6 standard waveforms, 50 built in waveforms and 12
- User-defined arbitrary waveforms
- 10 sets save & recall for operating parameters
- Modulations: AM, DSSC AM, FM, PM, ASK, FSK, BPSK
- Synchronous output, external modulation
- Input, trigger input
- External reference input and count input
- Linearity or Logarithmic sweep
- Signal and Burst signal
- Channel coupling, parameter
- Coupling, point frequency replication tracking
- Strong arbitrary waveform
- Building software, support SCPI commands
- Over voltage, over current
- Short circuit and reverse voltage protections
- Standard interface: RS232, USB device, USB Host
- 250 MHz external frequency
- Counter Optional power amplifier
Technical Specifications
| Output Waveform | Sine, Square, Ramp, Pulse, Noise, Arb, DC |
| Waveform Length | 8 to 16384 points (CHA), 8 to 2048 points (CHB) |
| Vertical Resolution | 14 bits |
| Sampling Rate | 150 MSa/s |
| Sine | Harmonics distortion
< -70 dB, < 20 kHz < -50 dB, 20 kHz to 1 MHz < -40 dB, 1 MHz to 30 MHz < -30 dB, 30 MHz to 60 MHz Total distortion≤0.2 % (20Hz ≤ f ≤100 kHz) |
| Square
Pulse |
Rise or fall edge: 18 ns
Duty cycle: 0.1 % to 99.9 % Edge jitter: ≤150 ps rms |
| Ramp | Symmetry: 0.0 % ~ 100.0 %
Non-linearity ≤0.1 %, 5 % to 95 % of signal |
| Noise | Repeat cycle >50 years |
| Arbitrary | Sampling rate: 1 μSa/s to 50 MSa/s
Vertical resolution: 14 bits |
| Output Characteristics | |
| Amplitude | CHA range
(High impedance) 2 mVpp or 20 Vpp ≤15MHz 2 mVpp to 10 Vpp ≤60 MHz (50 Ω) 1 mVpp to 10 Vpp ≤15 MHz 1 mVpp to 5 Vpp ≤ 60 MHz CHB range 2 mVpp to 6 Vpp (High impedance) ≤60 MHz 1 mVpp to 3 Vpp (50 Ω) ≤60 MHz Flatness (1 kHz) ±0.1 dB (<100 kHz), ±0.5 dB (100 kHz to 10 MHz), ±1.0 dB (10 MHz to 60 MHz) |
| Offset | CHA level range
± (10 V DC to AC peak or 2) (High impedance) ± (5 V DC to AC peak or 2) (50 Ω) CHB level range ± (189.3 mV DC–AC peak or 2) (High impedance) ± (94.7 mV DC –AC peak or 2) (50 Ω) CHA accuracy: ±1 % offset setting value ±0.25 % amplitude setting value ±2 mV CHB accuracy: ±1 % offset setting value ±0.25 % amplitude setting value ±3 mV |
| Modulation | AM modulation depth: 0.0 % to 120.0 %
FM modulation deviation: 0 to fc or 2 PM modulation range: 0.0° to 360.0°, FSK: 1 μHz to Fsine max (Sine), 1 μHz to Fsquare max (Square or Pulse), 1 μHz to Framp max (Ramp) BPSK: 0.0 °to 360.0 ° ASK: 2 mVpp to 20 Vpp |
| Sweep | Sweep mode: Linearity or Logarithmic
Sweep time: 0.001 s to 1000 s Trigger source: Imm or Ext or Bus |
| Burst | Burst mode: N Cycle or Gated
Burst numbers: 1 to 1000000, resolution 1 Interval time: 1 μ to 1000 S, resolution 1 μS |
| Pulse | Pulse width: 28.5 ns to period – 28.5 ns
Overshoot: ≤2 %(CHA) (50 Ω) Edge jitter: ≤150 ps rms |
| Counter | Frequency range: 0.1 Hz to 250 MHz
Resolution: 6 digits or s |
| Power Amplifier (Optional) | Frequency bandwidth: 20 Hz to 200 kHz
Max. output power: 5 W sine wave |

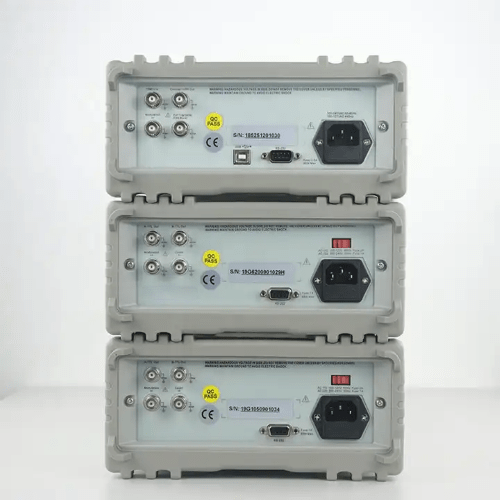

| Interface | USB Device, USB Host, RS232 |
| Power Source | AC 100 V to 240 V, 47 Hz to 63 Hz, Max. 30 V A |
| Accessories | Power cord x1, Operation manual x1, Software CD x1, USB cable x1, RS 232 cable x1, BNC BNC cable x1, BNC Crocodile cable x1 |
| Dimension | Chassis: 10.2 in x 4.3 in x 15.5 in (260 mm Wx110 Hx385 D mm) Instrument: 11.6 in x 7.6 in x 16.3 in (295 mm x195 mm x 415 mm) |
| Weight | 8.81 lb (4 kg) |
