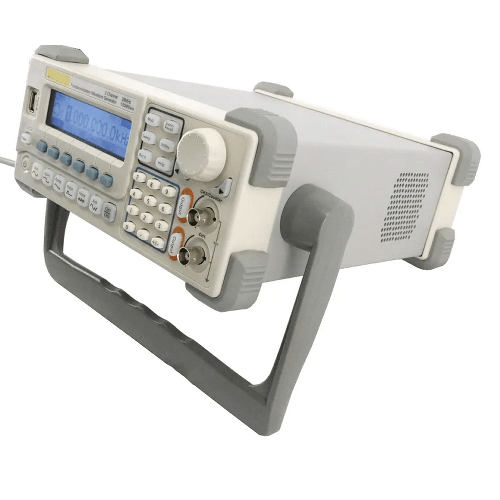

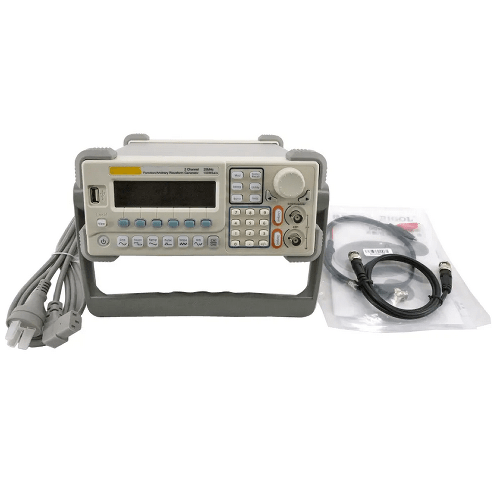

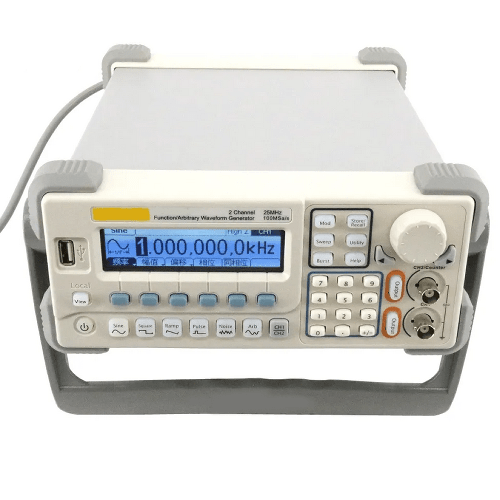

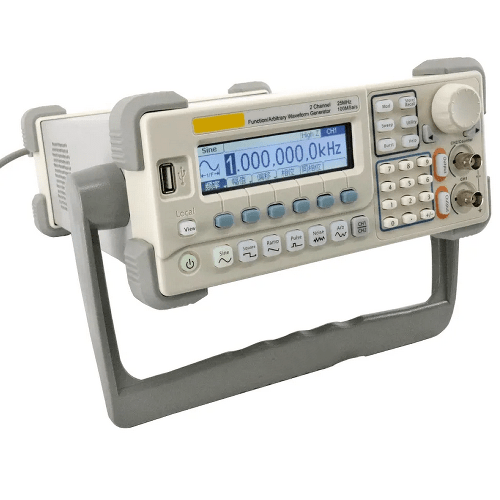

Features
- Adopt advanced DDS technology
- Dual channel output; 100 MSa/s
- Maximum sampling rate
- 14 bits vertical accuracy
- Output 5 standard waveforms
- Built in 48 arbitrary waveforms
- Abundant modulation functions
- AM, FM, PM, FSK, linear
- logarithm sweep and burst
- Abundant output and input
- waveform output; synchronous
- Signal output; external modulation source
- External 10 MHz reference clock input
- External trigger input
- Unique channel coupling and channel copy
- Built in high precision
- Wide band counter
- Measurement range: 100 MHz to 200 MHz
- Standard configuration interfaces
- USB Device & USB Host
- Support U-disc storage
- Seamlessly interconnect with DS1000
- Series digital oscilloscope
- Powerful arbitrary waveform
- Editing software “Ultra Wave”
- Support remote control by commands
- A variety of display modes
- Clear graphical interface
- Button-help makes
- Information getting easier
- File management
Technical Specifications
| Maximum Output Frequency | 25 MHz (5 MHz square wave) |
| Output Channels | 2 |
| Sample Rate | 100 MSa/s |
| Arbitrary Waveform Length
CH1, CH2 |
2 pts to 4 kpts
2 pts to 1 kpts |
| Resolution | 1 μHz |
| Amplitude
CH1, CH2 |
2 mVpp to 10 Vpp(50 Ω),4 mV to 20 Vpp(High Z)
2 mVpp to 3 Vpp(50 Ω),4 mV to 6 Vpp(High Z) |
| Vertical Resolution
CH1, CH2 |
14 bits
10 bits |
| Standard Interface | USB Host & Device |
