Overview

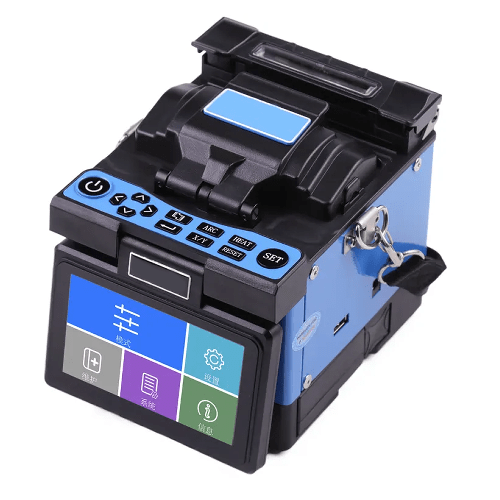

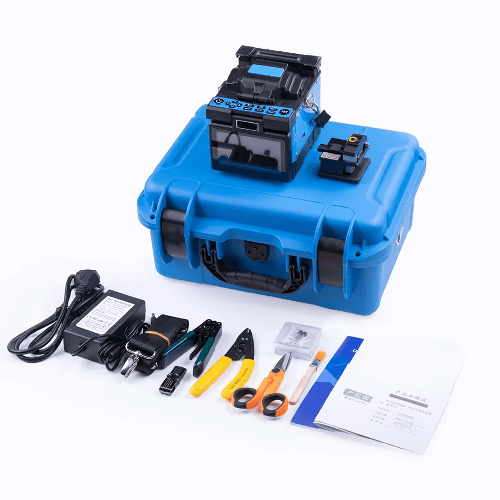

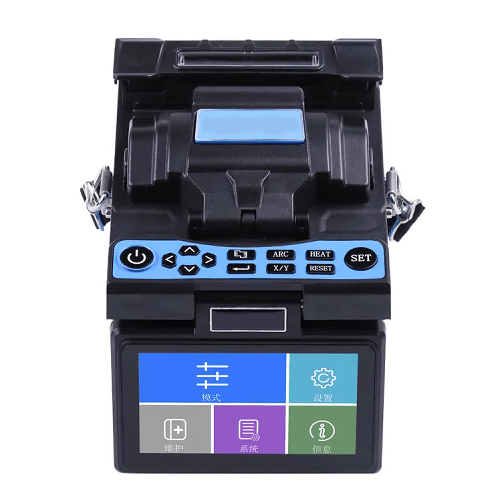

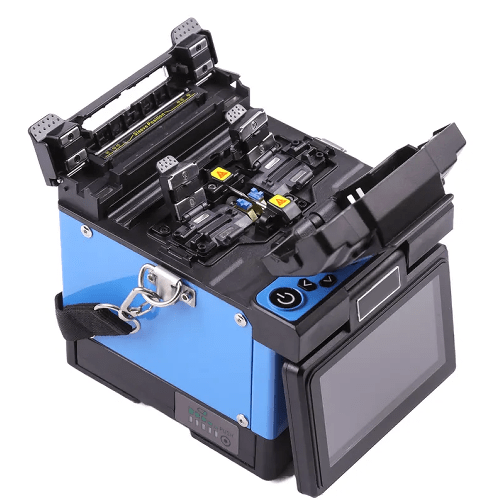

Emissions And Stack fusion splicer machine is high precision fusion splicer with smart appearance, reliable quality, fusion splicer is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, and maintenance of fiber cable.
Features
- 250 X or Y view, 125 X and Y view
- Large amplification and clear core
- 8 s splicing time and 26 sec heat time
- Used for FTTH and ordinary fiber project
- With 5200 mAh ultra-large capacity battery
- Cladding to cladding alignment by PAS technology
- Small size and light
- Three in one fixture
- Built in large capacity lithium battery
- 200 times splicing and heating
- 3 in (7.62 cm) digital high-quality LCD screen
- Observe X and Y view at same time
- V type high power automatic heater
Technical Specifications
| Splicing Type | SM, MM, DS, NZDS |
| Splicing Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) |
| Return Loss | Greater than 60 dB |
| Splicing Mode | Manual, half auto, auto |
| Fiber Alignment | Core to core alignment by PAS technology |
| Applicable Fiber | Cable indoor and 0.009 in to 0.03 in (0.25 mm, 0.9 mm) fiber, SC connector (option) |
| Splicing Time | Less than 8 s |
| Heat Time | Less than 26 s auto heat |
| Cleaved Length | 0.47 in to 0.62 in (12 mm to 16 mm) |
| Fiber Image or Magnification | 250 or 125 |
| View Display | 4.3 in (10.92 cm) digital high-quality LCD screen |
| Tension Test | Standard 2 N (option) |
| Heat Shrinkable Sleeve | 1.57 in, 2.36 in (60 mm, 40 mm) and serials heat Shrinkable Sleeve |
| Battery Capacity | 200 cycles splicing and heating, 3 hours charging time (splicing and charging at same time) |
| Battery Life | Cycling charge 300 times to 500 times, easy to replace battery |
| Electrodes Life | 4000, easy to replace electrodes |
| Power Source | Less than 20 W |
| Interface | USB Convenient data download and software update |
| Construction Lighting | Built in high brightness, wide range of lights, easy to operate at night |
| Electrodes Life | More than 5000 ARC discharges, can be replaced conveniently |
| Power Supply | Built in lithium battery 5200 mAh 11.1 V;
external adapter, input: AC 100 V to 240 V, output: DC 13.5 V or 4.5 A |
| Operating Condition | 0 ft to 3.1 mi (0 m to 5000 m) above sea level,
Temperature: 14 °F to 140 °F (-10 ℃ to 60 ℃), Humidity: 0 % to 95% RH (no dew) |
| Dimension (L X W X H) | 5.86 in × 4.72 in × 6.77 in (149 mm x 120 mm x 172 mm) |
| Weight | 4.18 lb (1.9 kg) (including battery) |
