Overview

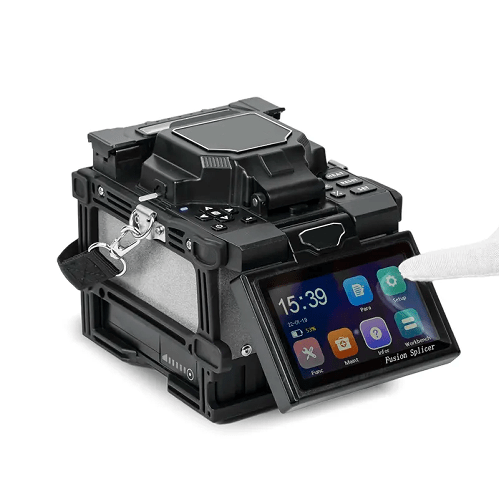

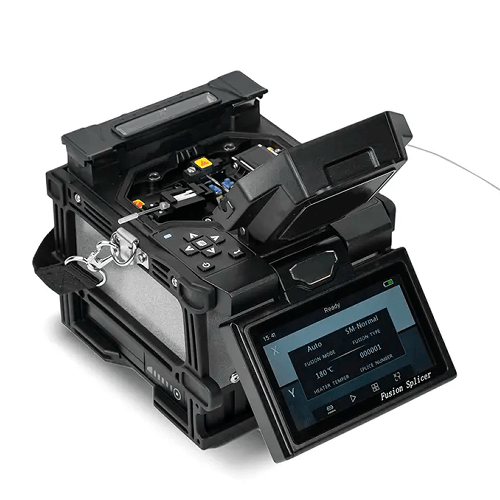

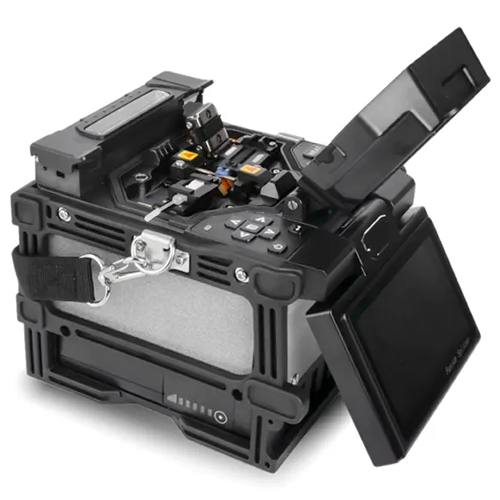

Emissions And Stack handheld fiber fusion splicer is with core-to-core alignment technology, it has flexible and stable performance when aligning fibers. It has classic industrial design, user-friendly size and weight, easy operating GUI menu, convenient ARC automatic calibration function and high-quality components. It is suitable for both indoor and outdoor fiber splicing projects.
Features
- 4 motors accurate core to core alignment
- 6 s splicing and 20 s heating
- Automatic and real-time ARC calibration
- Heating temperature and time both adjustable
- Automatic splicing and heating, easy to operate
- Anti-shock, anti-vibration, dust-proof and waterproof
- Apply to bare fiber, pigtails, drop cable
- Suitable for FTTx, FTTH, CATV, MAN projects
Technical Specifications
| Alignment Method | 4 motors core to core alignment |
| Cladding Diameter | 0.003 in to 0.005 in (80 μm to 150 μm) |
| Coating Diameter | to 0.03 in (160 μm to 1000 μm) |
| Typical Splice Loss | SM: 0.02 dB; MM: 0.01 dB; DS: 0.04 dB; NZDS: 0.04 dB |
| Return Loss | Greater than 60 dB |
| Splicing Program | 40 groups |
| Operation Mode | Manual or automatic |
| Auto- Heating | Available |
| Typical Splice Time | 6 s |
| Typical Heating Time | 20 seconds for 2.36 in (60 mm) and 1.57 in (40 mm) shrinkable sleeves |
| Fiber Magnification | 250 X (X or Y view), 125 X (X and Y view) |
| Viewing Display | Dual high sensitivity camera, 4.3 in (10.92 cm) 800-pixel x 480-pixel LCD Monitor |
| Data Storage | 4000 groups data records |
| Loss Evaluation | Available |
| Tension Test | 1.8 N to 2.25 N |
| Interface | GUI menu interface, easy for operation |
| Battery Capacity | 5200 mAh Li-battery, 250 cycles splicing and heating |
| Power Supply | Adaptor, input: AC 100 V to 240 V (50 Hz or 60 HZ), output: DC 11 V to 13.5 V |
| Electrode Life | More than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating Condition | Altitude: 0 ft to 3.1 mi (0 m to 5000 m),
Humidity: 0 % to 95 %, Temperature: 14 °F to 122 °F (-10 ℃ to 50 ℃); Wind: max 15 m/s |
| Dimension (L X W X H) | 6.18 in × 5.35 in × 5.51 in (157 mm × 136 mm × 140 mm) |
| Weight | 4.62 lb (2.10 kg) (including battery) |
