Overview

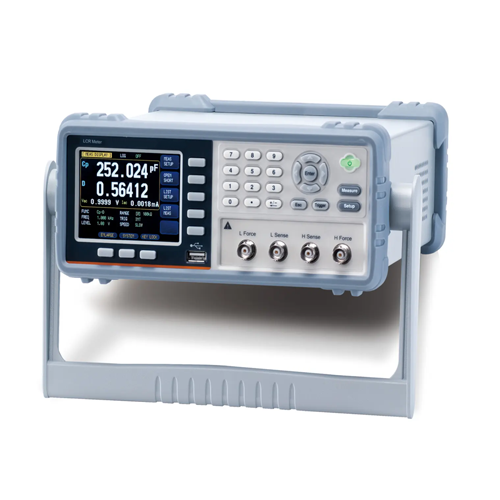

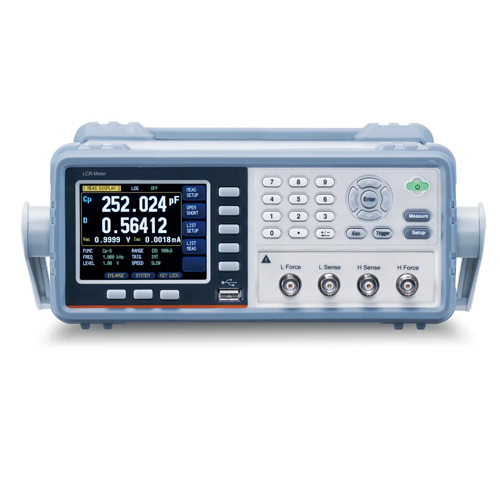

Emissions And Stack LCR meter a compact LCR meter with diversified and abundant features, is an excellent tool for various application stages of passive components, including R&D, engineering testing, incoming inspection, etc., or the production and sorting of passive components. In addition to simultaneously displaying setting criteria and measurement results, the series increases two additional monitoring parameters. In other words, there are four parameters, primary/secondary and two monitoring, simultaneously shown on the screen that tremendously enhances the measurement efficiency. The enlarged display mode not only emphasizes the measurement results but also provides PASS/FAIL judgment to facilitate a rapid and convenient test result.
Features
- Consecutive test frequency
- Measuring speed up to 25ms (max.)
- Full frequency range or spot OPEN/SHORT
- 16 major/secondary parameter measurement combinations and two additional monitoring parameters (maximum four different parameters can be shown simultaneously)
- DCR measurement and internal D.C. bias voltage (±2.5 V)
- PASS/FAIL judgment
- Auto Level Control (ALC) function
- BIN function provides 9BIN and 1 AUX, a totally of 10 BINS
Technical Specifications
| Warranty: | 1 year |
| Customized support: | OEM, ODM |
| Power: | Electronic |
| Power supply: | 110 V to 220 V |
| Keyword: | RLC Meters |
| Measuring range: | 2 KHz to 300 KHz |
| Basic accuracy: | 0.05% |
| Frequency: | 10 Hz to 2 KHz or 20 KHz or 100 KHz or 200 KHz or 300 KHz |
| Measuring speed: | up to 25 ms (max.) |
| Usage: | Component testing |
