Overview

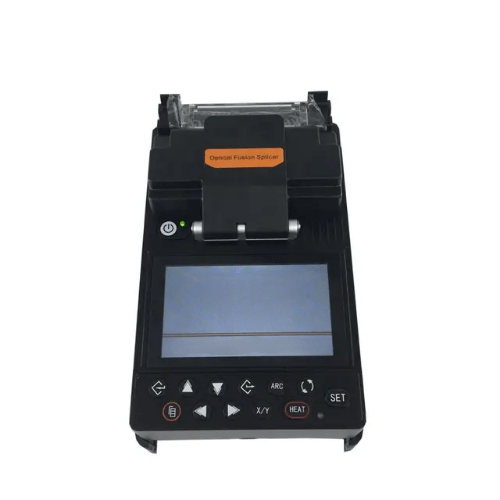

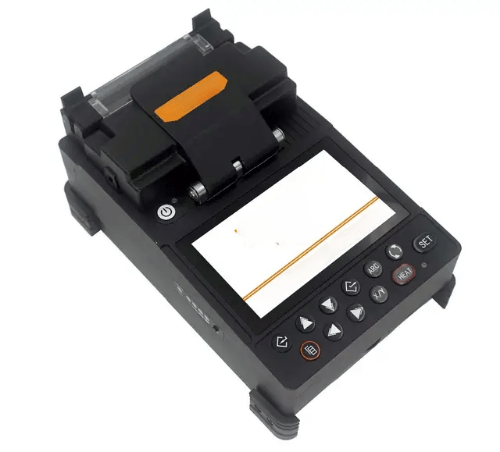

Emissions And Stack Mini Fiber Fusion Splicing Machine, with smart appearance, reliable quality, it is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, and maintenance of fiber cable.
Technical specifications
| Use | FTTH FTTB FTTX |
| Return Loss | > 60 dB |
| Splicing Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) |
| Splicing Time | ≤9 s |
| Heat Time | ≤30 s AUTO HEAT |
| Cleaved Length | 0.314 in to 0.63 in (8 mm to 16mm) |
| Fiber Image or Magnification | 300 or 150 |
| Tension Test | Standard 2N (option) |
| Splicing Type | SM, MM, DS, NZDS |
| Splicing Mode | Manual, Half Auto, Auto |
