Overview

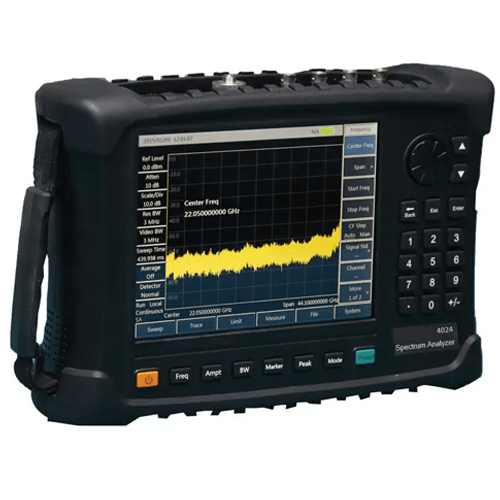

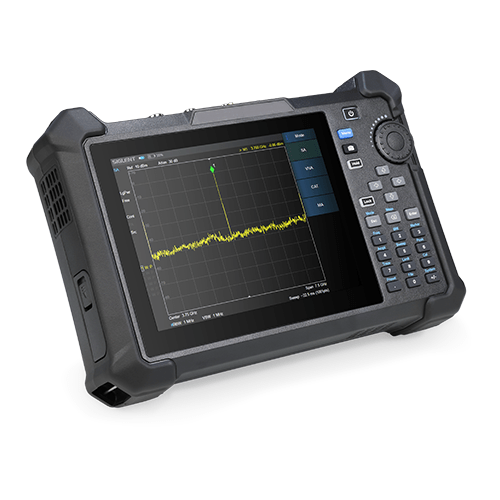

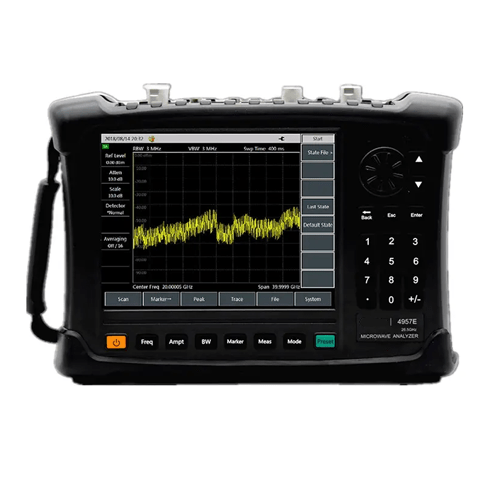

Emissions And Stack multifunctional analyzer with frequency range of 6.5 GHz or 18 GHz or 26.5 GHz or 40 GHz, integrate multiple functions such as dual-port vector network analysis, cable and antenna feeder test, vector voltage measurement, spectrum analysis (channel power, adjacent channel power, occupied bandwidth, interference analysis and frequency counting), field strength measurement and power measurement, providing you with powerful comprehensive test capabilities.
Features
- Dual-port vector network analysis
- Cable and antenna feeder test
- Spectrum analysis
- The field strength measurement
- The USB power sensor
- Small size, light weight, easy to carry
- LCD touch screen
- Test data can be stored and called
- Battery powered, suitable for field use, intelligent power management
- Six-independent cursor display function
- Data storage, playback and comparison functions
Technical Specification
| Frequency range | 30 KHz to 6.5 GHz or 30 KHz to 18 GHz or 50 MHz to 40 GHz |
| Power supply | Rechargeable lithium-ion battery or power adapter |
| Power consumption | ≤30 W or ≤45 W (excluding battery charging) |
| Effective directivity | ≥40 dB (30 kHz to 6.5 GHz) |
| Output power accuracy | ±2.5 dB |
| Effective source match | ≥33 dB |
| Transmissio n tracking | ±0.08 dB |
| System dynamic range | ≥95 dB |
| Power range | -80 m to +20 dBm |
| Resolution bandwidth | 10 Hz to 10 MHz (1 step, 3 steps, 10 steps) |
| Total absolute amplitude accuracy | ±1.8 dB |
| Phase Noise | ≤-108 dBc or Hz at 10 kHz |
| Operating temperature | 14 °F to 41 °F (-10 ºC to +5 ºC) |
| Storage temperature | -40 °F to 158 °F (-40 ºC to +70 ºC) |
| Maximum weight | 11.6 lb (5.3 kg) (excluding battery) |
| Maximum dimensions | 12.4 in x 8.66 in x 4.01 in (315 mm × 220 mm × 102 mm) (excluding handle and bracket) |
