Overview

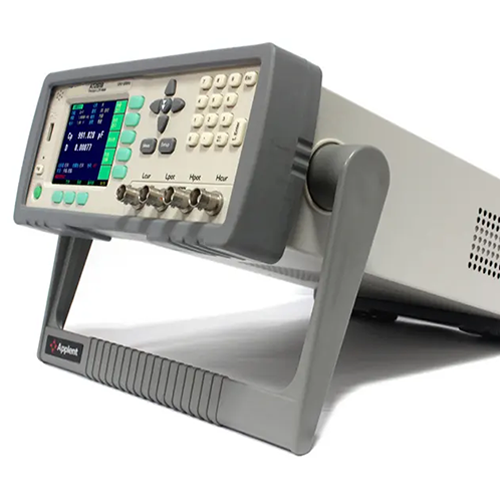

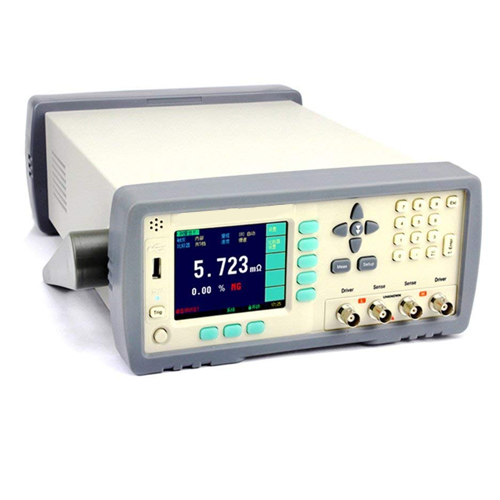

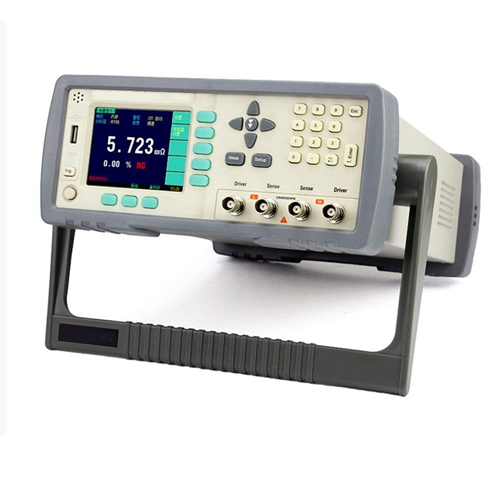

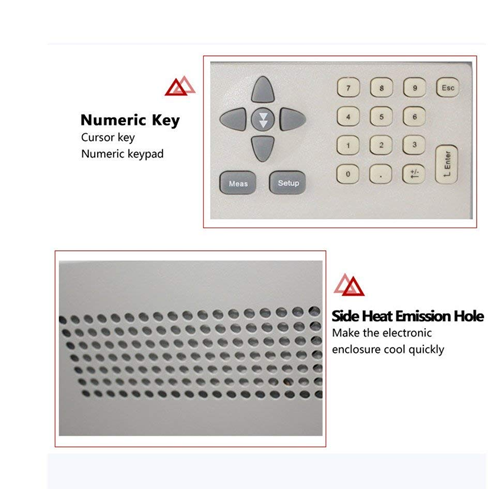

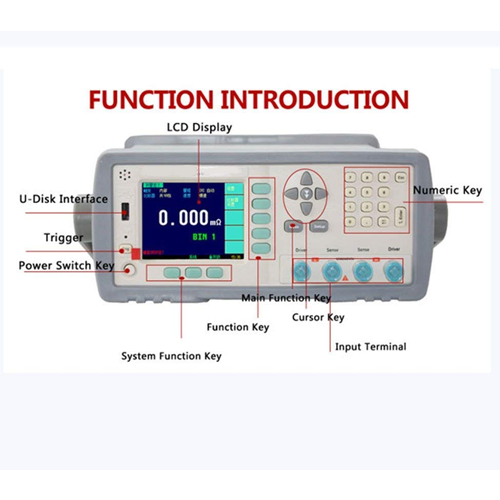

Emissions And Stack Promotion Digital LCR Meter is the use of a high-performance processor and highlight colour LCD screen smart LCR Meter. It offers wide frequency range (50 Hz to 100 kHz 10 points), signal level (0.1 V, 0.3 V, and 1.0 V), auto range with 9 ranges, 30 Ω or 100 Ω constant output impedance and an easy-to-use operation system. Built-in RS232C and handler interfaces help build an automatic component test system, communicate with the computer and analysis the test results.
Features
- TFT-LCD Display
- Correction OPEN and SHORT
- View: Δ ABS, Δ % or Sorting Result on 3rd Line
- Comparator Function 10 files,6 bins P1 to P9, NG, AUX, HI, IN, LO

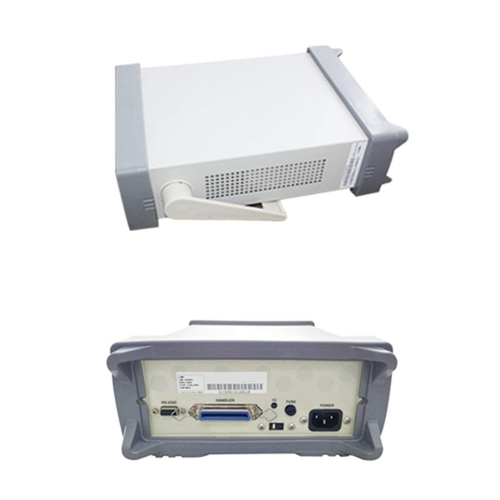

- Interface RS232C and Handler
- Optional Interface USB
- Test signal monitor Vm and Im
- Average rate 1 to 99 times
- Measurement Terminal 5 terminals
- Key lock function
Technical specification
| Accuracy | 0.05 % |
| Frequency | 50 Hz to 100 kHz |
| Display Range | L: 0.0001 μH to 99999 H C: 0.0001 pF to 99999 μF R, Z: 0.0001 Ω to 99.999 MΩ D, Q: 0.0001 to 99999 Δ%: -99999% to 99999% |
| L range | 0.0001 μH to 99999 H |
| C range | 0.0001 pF to 99999 μF |
| R or Z range | 0.0001 Ω to 99.99M Ω |
| Source Resistance | 30 Ω 50 Ω 100 Ω |
| Range | 9 ranges Automatic, Manual, Nominal |
| Display Max | principle parameter: 99999 sub parameters: 99999 |
| Signal Level | 0.1 V, 0.3 V, 1.0 V |
| Speed | 30 t or s, 10 t or s, 6 t or s, 3 t or s 1 to 256 times average is available |
| Comparator | 7 – bin sorting, 3 – bin GD, 1-bin NG, 1-bin AUX, 2 – bin principal parameter NG |
| Adjustment | Open or Short sweep frequency reset, 3 – point frequency and load correction |
| Files | 10 group files to save users’ setting, 1 group system data save real-time |
| Interface | RS232C, Ex Handler Interface, with standard USB disc interface |
