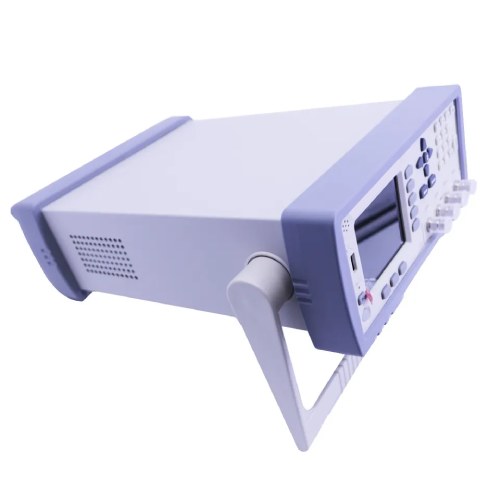

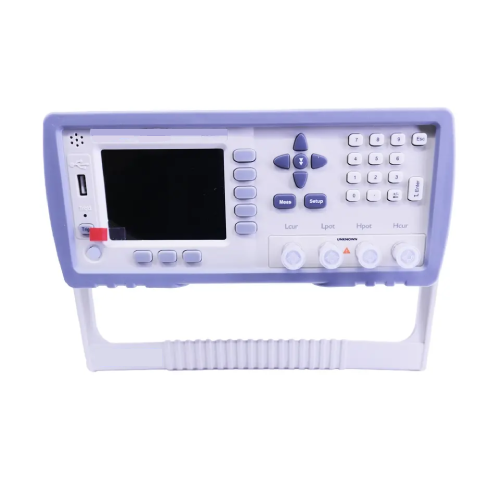

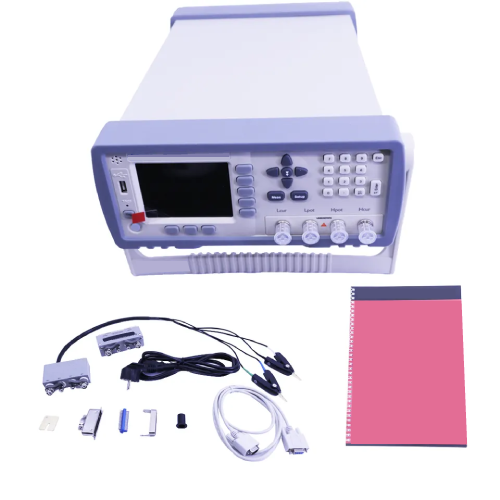

Overview:
Emissions And Stack smart LCR Meter uses high-performance processors and highlights color LCD screen smart LCR Meter. Since the SMD technology makes portability. We rely on highly skilled technical so that the instrument has even more outstanding performance. It offers a wide frequency range (10 Hz to 20 kHz 0.001 Hz Step), signal level (0.01 V to 2.00 V, 0.01 V Step), auto range with 9 ranges, 30 Ω or 100 Ω constant output impedance and an easy-to-use operation system. Built-in RS232C and handler interfaces help build an automatic component test system, communicate with the computer and analyse the test results.
Features:
- TFT-LCD Display
- Correction: OPEN and SHORT
- View: Δ ABS, Δ % or Sorting Result on 3rd Line
- Comparator Function: 10 files, 6 bins: P1 to P9, NG, AUX, HI, IN, LO

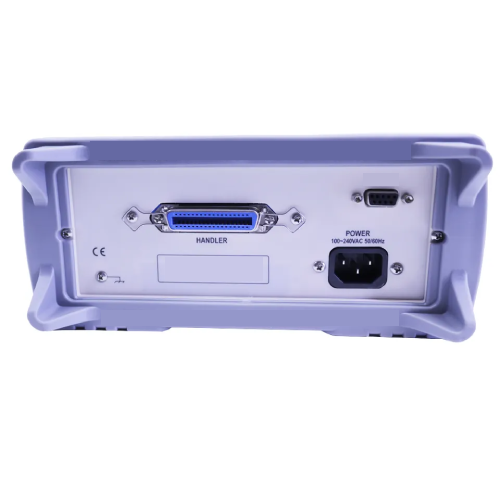

- Interface: RS232C and Handler
- Optional Interface: USB
- Test signal monitor: Vm and Im
- Average rate: 1 to 99 times
- Measurement Terminal: 4 terminals
- Key lock function
Technical specification:
| Test Functions | Cs to Rs, Cs to D, Cp to Rp, Cp to D, L p to Rp, L p to Q, Ls to Rs, Ls to Q, R to X, Z to θ rad, Z to θ deg DCR |
| Accuracy | 0.05 % |
| Measurement Frequency | 10 Hz to 20 kHz (Resolution 0.001 Hz) |
| Measurement Range | AUTO or HOLD or NOMINAL 9 Ranges |
| Measurement Speed | 30 times or s, 10 times or s, 3 times or s |
| Display Range | L: 0.00001 μ H to 9999.99 H C: 0.00001 pF to 9999.99 μ F R, X, Z: 0.00001 Ω to 99.9999 MΩ D, 0.00001 to 9.99999 Q: 0.00001 to 99999.9 Δ %: -999999 % to 999999 % θ (deg): -179.999 ° to 179.999 ° θ (rad): -3.14159 to 3.14159 DCR: 0.00001 Ω to 99.9999 MΩ |
| Source Resistance | 30 Ω, 50 Ω and 100 Ω |
| Monitor Parameter | Z, D, Q, θ r, θ d, R, X, G, B, Y, V AC, I AC, Δ, Δ% |
| Display Reader | 6 digits: 999999 |
| Equivalent Circuit | Serial and Parallel |
| Signal Level | 10.00 mV to 2.00V AC 100.0 μ A to 20.00 mA AC |
| Average | 1 to 256 |
| Trigger Mode | INT or HOLD or MAN or BUS |
| Trigger Delay | 0.01 m s to 60 s |
| Comparator | OK: 10-BINS NG: 1-BIN AUX: 1-BIN |
| List Test | 10 Steps (Frequency or Voltage or Current) |
| Comparator Mode | SEQ or ABS or PER |
| Adjustment | OPEN or SHORT Zeroing (ALL, SPOT) |
| Files | built-in 10 files and USB Disk 10 files |
| Data Logger | 9999 Log Files (.csv) |
| Beep Feature | OFF or PASS or FAIL |
| Interface | RS232 or RS485 or USB or HANDLER or GPIB (OPTION) (RevE) |
| Protocol | SCPI or Modbus (RevE) |
| Other Functions | AUTO LCZ |
| Power Supply | AC 100 V to 240 V, 50 Hz to 60 Hz 20 W MAX |
| Dimension & Weight | 10.39 in x 4.21 in x 13.77 in (264 mm x 107 mm x 348 mm) and 6.61 lb. (3 kg) |
