Overview

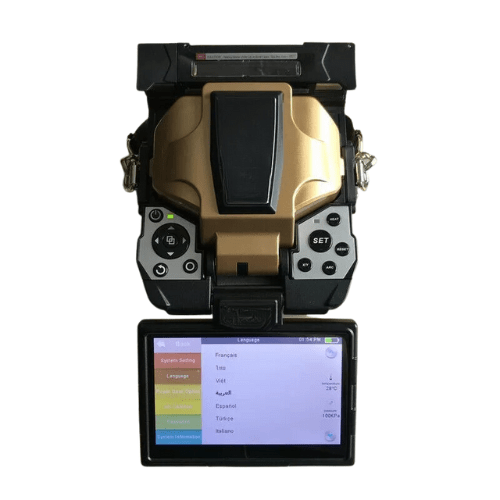

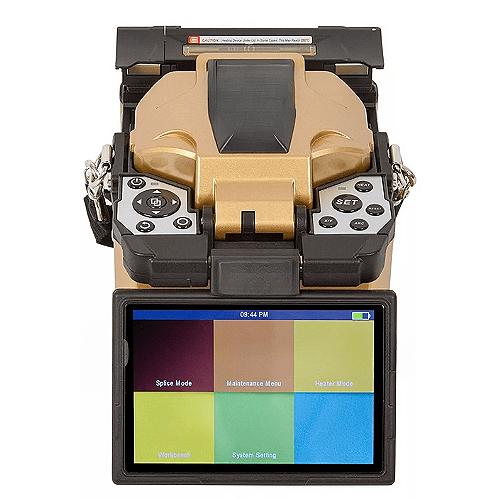

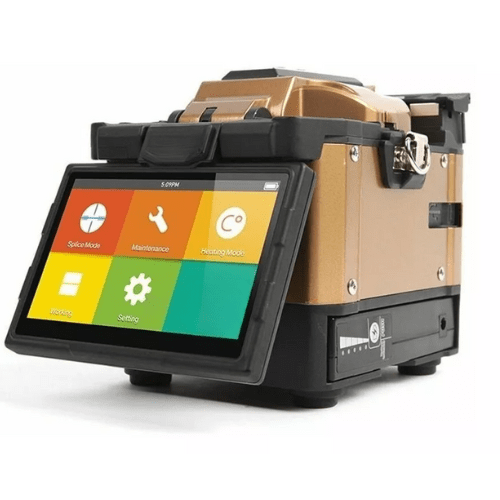

Emissions And Stack mini splicing machine is conveniently designed for FTTx, it’s excellent portability and reliability give customers excellent convenience in any place. It’s faster splicing and heating time also provide improved efficiency and satisfaction to customers. Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
Features
- Fast splicing time
- Two batteries
- SOC compatible
- Universal holder
- Applicable cleaved length
- Full touch screen
Technical Specifications
| Applicable Fibers | SMF (ITU-T G.652), MMF (ITU-T G.651), DSF (ITU-T G.653), NZDSF (ITU-T G.655), EDFA, EI980, disponível com diferentes tipos de fibra de Emenda (SM/MM), ITU-T G.657 |
| Average Splice Loss | Alinhamento |
| Return Loss | ≥ 60 dB |
| Quick Splicing Time | 8 s |
| Quick Heating Time | 15 s |
| Splicing Program | 50 groups |
| Protection Sleeve Length | 1.57 in (40 mm), 1.77 in (45 mm), 2.36 in (60 mm) |
| Operating Language | Chinese, English |
| Operating Conditions | operation temperature: 14 ⁰F to 122 ⁰F (-10 °C to +50 °C),Humidity: 0 % to 95 %
Altitude: RH 0 mi to 3.011 mi (0 m to 50000 m) |
| Battery | Inner lithium battery: 11.1 V, 5.2 AH, Up to 180 times splice and heat |
| Power Supply AC Input | AC adaptor: 100 V to 240 V input voltage, 50 Hz or 60 Hz; |
| DC Input | 12 V, 5 A output voltage(DC) |
| Monitor | Dual cameras, 90 degree bi-dirctional view ,4.3 in (10.92 cm) high resolution colorful LCD display |
| Fiber Image Magnification | X or Y Separately 400 times or Simultaneously 200 times |
| Estimated Splice Loss | Available |
| Tdisplay | Touch screen |
| Automatic Setting | Available |
| Tension Test | 1.96 N to 2.25 N |
| Storage of Splice Result | 6,000 groups of latest splice results |

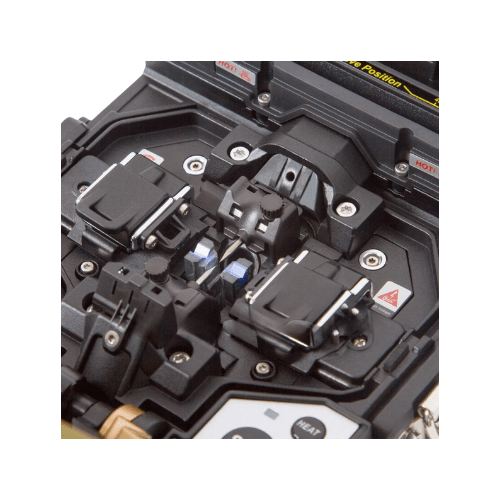

| Optical Fiber Fixture | 3-in-1 cutting fixture; Multipurpose 1+N fixture (for SC or LC or FC connector) |
| Terminal | USB for Memorizing and Updating |
| Dimensions | 0.78 in x 4.72 in 5.12 in (20 mm x 120 mm x 130 mm) |
| Weight | 4.85 lb (2.2 kg) (with battery pack) |
