| Certification |
CE RoHS FCC |
| Operating Temperature |
5 °F to 131 °F (-15 ℃ to +55 ℃) |
| Storage Temperature |
-13 °F to 149 °F (-25 ℃ to +65 ℃) |
| Motor Numbers |
4 |

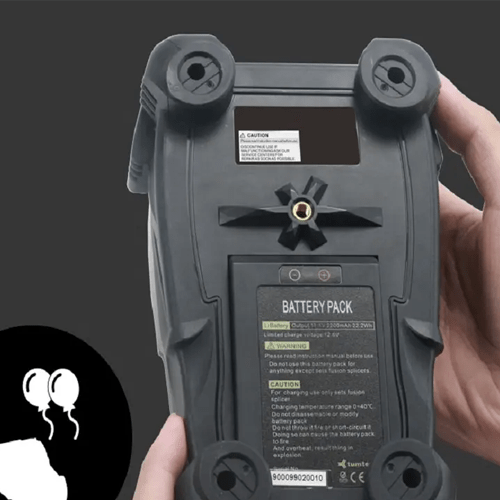

| Battery |
2200 mAh |
| Language |
Multi Language |
| Applicable Fibers |
SM (ITU-T G. 652 & G.657), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G655) |
| Compatible Fiber Cable |
0.009 in x 0.11 in (0.25 mm x 3.0 mm) Indoor Cable |
| Cleaved Length |
Coating Diameter: 0.009 in x 0.03 in (0.125 mm x 1mm) Cleave length 0.31 in x 0.62 in (8 mm x 16 mm) |
| Splicing Mode |
Preset 41 splicing modes, storable 100 modes |
| Typical Splice Loss |
SM: 0.03 dB or MM: 0.02 dB or DS: 0.05 dB or NZDS: 0.05 dB or G657: 0.03 dB (ITU to T Standard) |
| Return Loss |
≥60 dB |

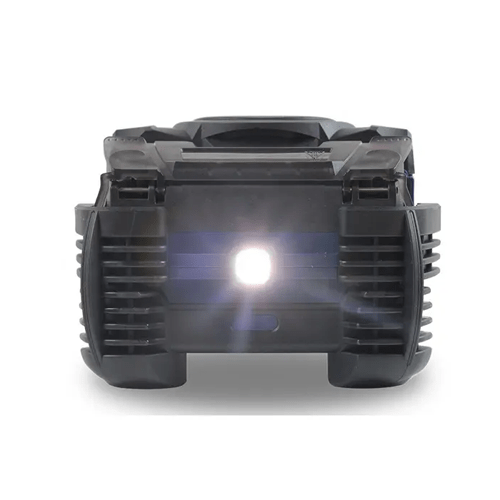

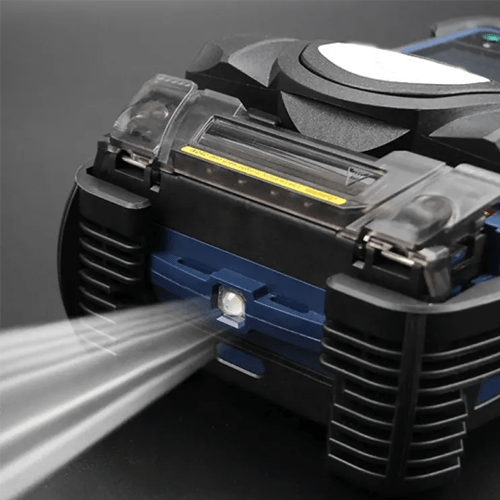

| Lighting |
2 powerful white LEDs |
| Splicing Time |
SM fast mode: 6 s |
| Estimated Splice Loss |
Yes |
| Protection Sleeve Length |
0.78 in x 2.36 in (20 mm x 60 mm) |
| Heating Tank |
Preset 5 kinds of thermal heating tube: 0.78 in x 1.18 in x 1.57 in x 1.96 in x 2.36 in (20 mm x 30 mm x 40 mm x 50 mm x 60 mm), Max 100 modes |
| Heating Time |
Fast heating time: 13 s, Typical Heating Time: 30 s |
| Results Storage |
20000 latest records & 200 images |
| Tension Test |
1.5 N to 2.0 N |

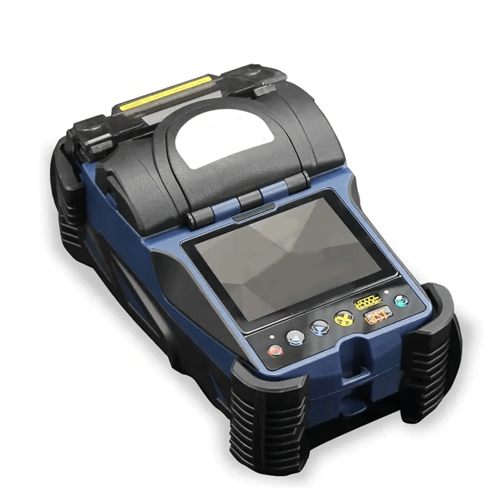

| Display |
3.5 in (8.89 cm) high resolution display with touch screen |
| Fiber View & Magnification |
X, Y, XY, X or Y :380 × Magnification |
| Power Supply |
AC Input 100 V to 240 V, DC Input 12 V to 15 V |
| Heating Times |
Typical above 120 times (splicing heating) |
| Operating Methods |
Button or Touch Screen |
| Automatic Calibration |
Automatic ARC calibration by air pressure and temperature |
| Electrode Life |
Automatic ARC calibration by air pressure and temperature |
| Terminal |
USB 2.0 |
| Dimension |
5.31 in x 8.07 in x 3.85 in (132 mm x 205 mm x 98 mm) (including rubber Bumper) |
| Weight |
2.53 Ib (1.15 kg) (including rubber Bumper) |
