Overview
Emissions And Stack’s high precision LCR meter 20Hz to 5MHz with TFT LCD is designed for advanced electronic testing in laboratories and production facilities. It provides wide frequency coverage, fine resolution, and excellent accuracy of up to 0.05%, ensuring stable and reliable component measurements. The device supports inductance, capacitance, resistance, and impedance testing, with the ability to simultaneously display multiple parameters. Engineers can perform advanced functions such as graphic scanning analysis, frequency/level/bias sweeps, and built-in comparator testing. Equipped with RS232, USB, handler, and optional GPIB interfaces, it can be easily integrated into automated testing environments. The large 7-inch TFT LCD screen provides clear visualization of results, while the multiple test modes, calibration functions, and storage options enhance usability. With fast measurement speed, wide display range, and flexible trigger modes, this meter is ideal for R&D, quality control, and manufacturing.
Features
- Wide test frequency range (20 Hz to 5 MHz) with 0.0001 Hz resolution
- High accuracy up to 0.05% for stable measurements
- Multi-parameter display (up to six results simultaneously)
- Built-in comparator and DCR testing function
- Graphic scanning analysis for frequency or level or bias
- Multiple trigger modes (internal, manual, external, bus)
- Fast measurement speed: up to 200 times/second
- Interfaces include RS232C, USB Host or Device, Handler, headphone jack, optional GPIB
- Storage capacity: 100+ internal settings, 500+ via USB drive

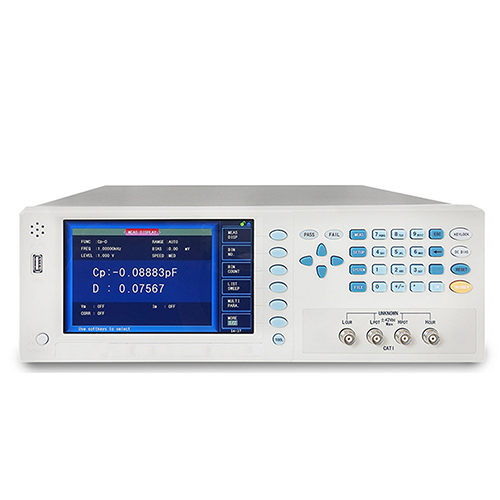

- 7-inch TFT LCD (800 × 480) display for clear data presentation
Technical Specifications
| Frequency Range | 20 Hz to 2 MHz, resolution 0.0001 Hz |
| Basic Accuracy | 0.05% |
| Equivalent Circuit | In series or in parallel |
| Mathematical Functions | Absolute deviation, percentage deviation |
| Range Way | Automatic, hold, manual selection |
| Trigger Mode | Internal, manual, external bus |
| Measure Speed (≥1 kHz) | High: up to 200 times per second (customizable); Middle: 12 times per second; Low: 3 times per second |
| Average Time | 1 to 255 |
| Delay Time | 0 to 6 s, step 1 ms |
| Calibration Function | Open circuit, short circuit, load |
| Display Mode | Direct reading, Δ% (delta percent), V and I (measured voltage and current monitoring) |
| Display | 7 in TFT LCD, 800 x 480 px resolution |
| Output Impedance | 30 Ω; 100 Ω; 10 Ω or 100 Ω; 10 Ω or CC selectable |
| Test Signal Level | Normal: 10 mV to 5 V (accuracy ±10%, 1 mV step). Constant level: 10 mV to 1 V (accuracy ±5%, 1 mV step). |
| DC Bias Source | Internal: −5 V to +5 V (100 mA), built-in bias current source |
| Display Range (DC Resistance DCR) | 0.01 mΩ to 99.9999 MΩ |
| Display Range (Capacitance C) | 0.00001 pF to 9.9999 F |
| Display Range (Inductance L) | 0.00001 μH to 99.9999 kH |
| Display Range (Dissipation Factor D) | 0.00001 to 9.9999 |
| Display Range (Quality Factor Q) | 0.00001 to 9999.9 |
| Display Range (Phase Angle θ In Degrees) | −179.999° to 179.999° |
| Display Range (Phase Angle θ In Radians) | −3.14159 to 3.14159 |
| Comparator Function | 10 grades (9 qualified, 1 not qualified), AUX grade available |
| Storage | >100 internal instrument settings; USB extension supports >500 sets |

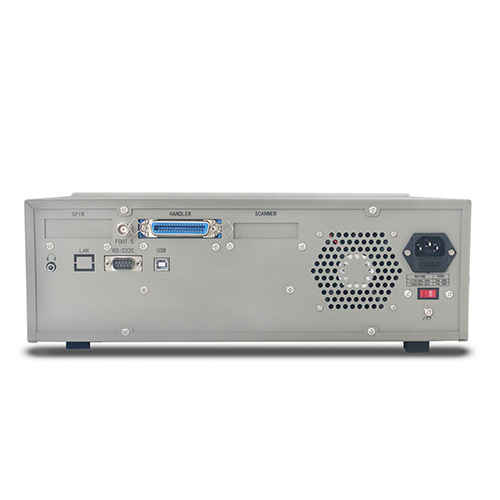

| Interfaces | RS232, USB Host, USB Device, Handler, headphone jack, foot pedal |
| Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions | 14.57 in x 4.92 in x 13.39 in (370 mm x 125 mm x 340 mm) |
| Weight (Product Only) | 16.31 lb (7.4 kg) |
