Overview

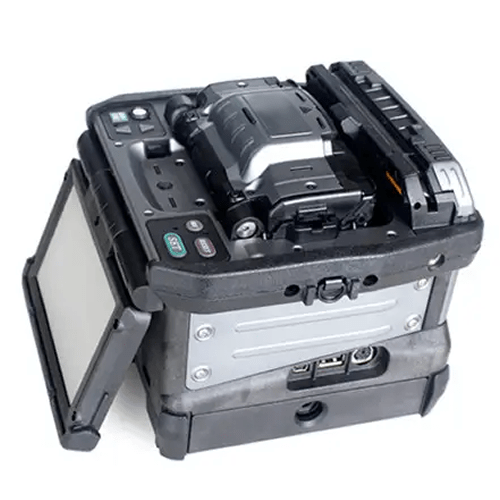

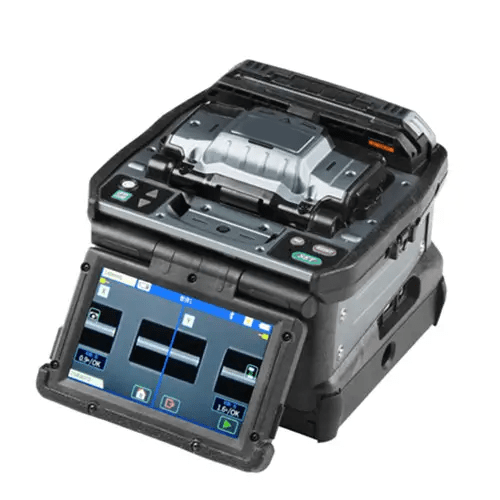

Emissions And Stack fusion splicer fiber which is designed for splicing single-count optical fiber for telecommunication use. Shock resistance, dust resistance, and rain resistance.
Features
- Color LCD monitor and 256 magnifications
- Compact and Light weight
- Reversible monitor with control panel on each side
- 8 s splice time
- 40 s tube-heat time simultaneous X and Y views
- Large capacity internal battery
- System test ensures the best working condition user programmable
- Auto check fiber end face
- Auto calibrate parameters
- Store 8000 groups of splice results multiple language options
Technical Specifications
| Fiber Count | Single |
| Cladding Diameter | 262 ft to 492 ft (80 m to 150 m) |
| Coating Diameter | 328 ft to 0.62 mi (100 m to 1000 m) |
| Applicable Fibers | SM MM DS NZ-DS EDF |
| Fiber Cleaved Length | 0.31 in to 0.86 in (8 mm to 22 mm) (standard) |
| Splicing Mode | Auto and Manual |
| Average Splice Loss | 0.02 dB (SM) 0.01 dB (MM) 0.04 dB (DS) 0.04 dB (NZDS) |
| Return Loss | Greater than 60 dB |
| Environment Conditions | Environment conditions: -13 °F to 122 °F (-25 °C to 50 °C) (operation temperature) |
| Humidity | 0% RH to 95% RH |
| Protection Sleeve Length | 0.78 in, 1.57 in, 2.36 in (20 mm, 40 mm, 60 mm) |
| Product Keywords | optical fiber fusion splicer machine price Shineway Tech fiber splicing machine |
