Overview

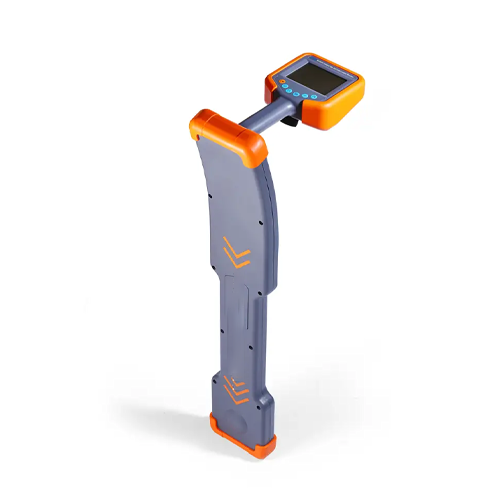

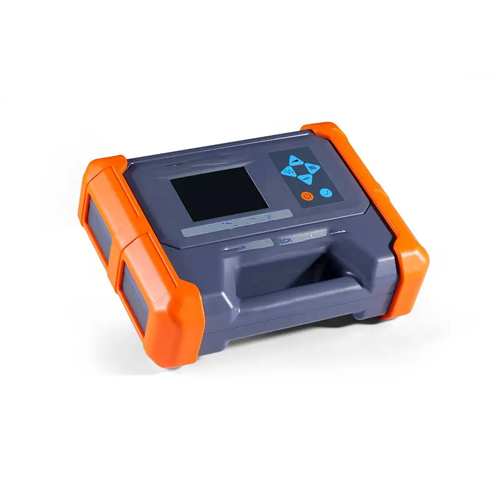

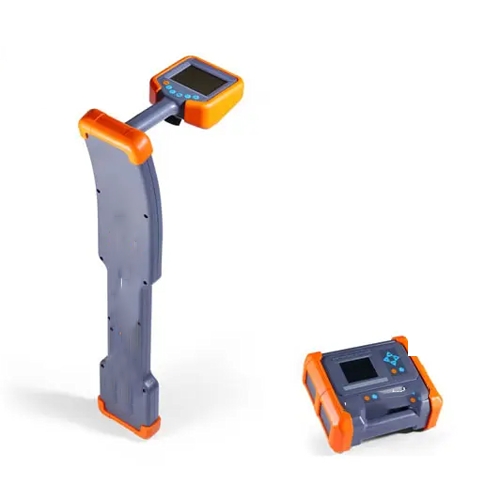

Emissions And Stack Ground penetrating radar is a high performance underground metallic pipe locating system. It consists of a transmitter and a receiver, which can be used to do route tracing, pipe exploration and depth measurement of the underground cables and metallic pipes. It can also be used to identify target cable from a bunch of cables, locate the pipe insulation damage and part type cable fault.
Features
- Compass display
- Right or wrong indication
- Depth measurement and current measurement
- All digital high accuracy sampling
- Cable or pipe identification
Technical Specifications
| Output Mode | Direct Connection output, Clamp Coupling Output (optional), Radiation output, fault location booster (optional). |
| Output Frequency | 640 Hz (complex frequency), 1280 Hz (complex frequency), 10 kHz, 33 kHz, 82 kHz, 197 kHz. |
| Output Power | Max. 10 W, 10 levels adjustable, auto impedance matching. |
| Direct Connection Voltage | Max. 150 Vpp. |
| HMI | 320 x 240 LCD |
| Power Supply | 4 x built-in 18650 Li-ion batteries, standard 7.4 V, 6.8 Ah. |
| Cable Identification Mode | flexible Clamp (optional) intelligent identification and sensor (optional) identification |
| Volume | transmitter 11.02 in x 8.66 in x 3.54 in (280 mm x 220 mm x 90 mm), receiver 26.7 in 10.9 in x 4.7 in (680 mm x 277 mm x 120 mm) |
| Weight | transmitter 5.07 lb (2.3 kg), receiver 4.40 lb (2 kg) |
| Charger | input AC 100 V to 240 V, 50 Hz or 60 Hzoutput DC 8.4 V, 2 A |
| Others | Temperature: 14 °F to 104 °F (- 10 ℃ to + 40 ℃)Humidity 5 % to 90 %
Elevation < 2.79 mi (< 4500 m) |
