Overview:

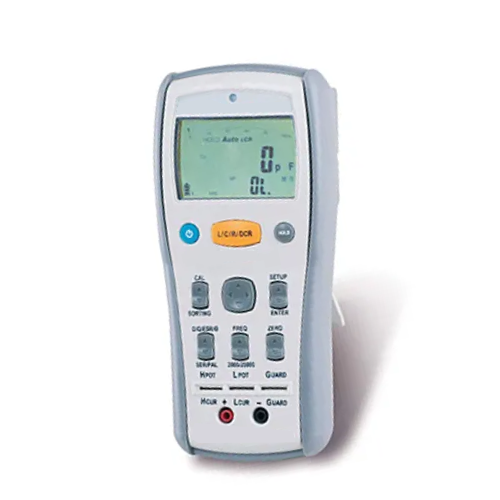

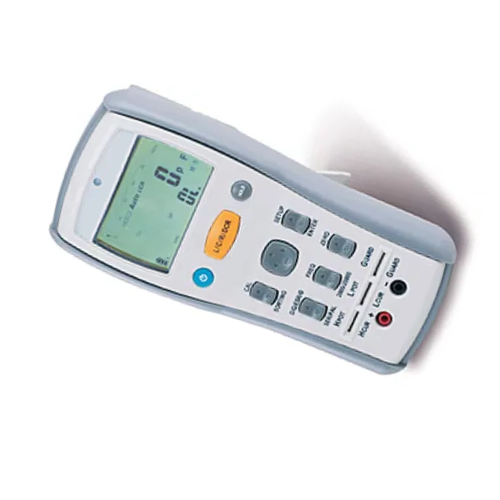

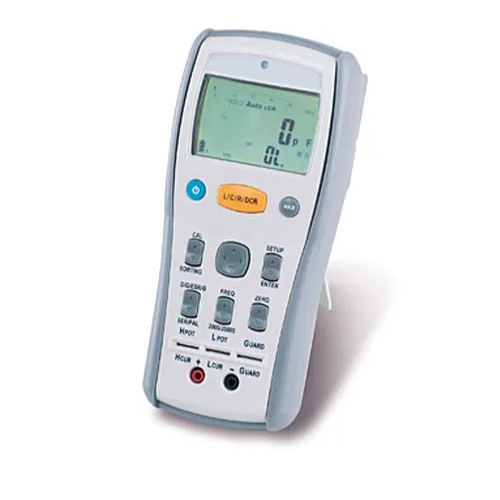

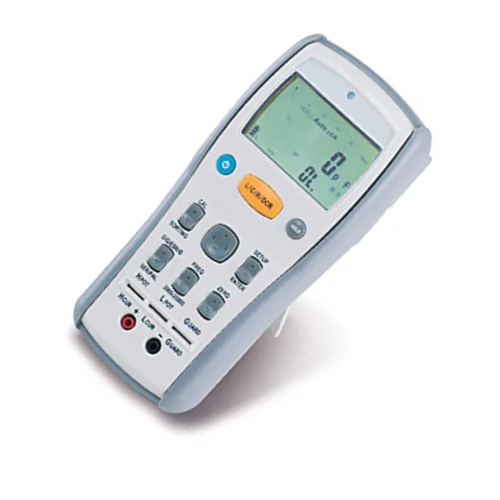

Emissions And Stack LCR meter is smart, convenient and fully functional dual-display handheld LCR meter. The test frequency extends as high as 100 kHz or 10 kHz, providing greater flexibility to test a broader range of components. The LCR is fully functional using a dual 20,000 or 2,000-count display. The 20,000-count display is used for the primary parameters such as capacitance, inductance and resistance as well as DC resistance measurement, and a 2,000-count display is for secondary parameters such as Q, D, ESR and RP measurement. Secondary measurements can also be combined with the primary measurement while the primary measurement is still being taken. It provides two measurement methods, 2 wire and 5 wire measurement. It also comes with a host of various standards or optional accessories to assist the testing of a number of different component types. It includes handy functions such as data hold, tolerance sorting, zero mode and Min or Max. The meter’s USB interface can be used to log data to a PC using its software and the DC 5 V is provided to power the meter.
Features:
Technical specifications:
| Function | Test Measurement |
| Counts Dual Display | 20,000 or 2,000 |
| Test Frequency | 100 Hz or 120 Hz or 1 Hz or 10 Hz or 100 KHz |
| Basic Accuracy | 0.2 % |
| Measurement Parameter | L, C, R, D, Q, Esr, Θ, Dcr |
| Measurement Circuit | Parallel Or Series Testing Mode |
| Best Accuracy | +( 0.2 % R Dg + 2 Digits) |
| Resolution | 0.001 U H To 0.001 K H Depends on Selected Range |
| Resistance | Range 200 To 200 mq Depends on The Selected Test Frequency |
| Phase Angle (6) | Range -90 ° to 90 ° |
| Jaccuracy | + (0.2 % Rdg + 5 Digits) |
| Resolution | 0.1 |
| Auto LCR Mode | Automatically Identifies and Measures the Dut When the Meter Is Switch On |
| Sorting Mode | O.1 %, + 0.2 %, + 0.25 %, + 0.5 %, + 1.0 %, + 2.0 %, + 5.0 %, + 10.0 %, + 20.0 %, + 80 % To 20 % Selectable |
| Other Functions | Auto Range, Auto Backlit, Max, Min, Data Hold, Zero, Auto Power Off, 46 Segments Analogue Bar |
| Display | Lcd Mono Display |
| Power Source | 1.5 V x 4 Or DC 5 V (Through Ac Adapter or USB Cable) |
| Dimensions | 3.74 in x 8.14 in x 2.04 in (95 mm X 207 mm X 52 mm) |
| Weight | 1.39 lb (630 g) |
