Features
- Dual- channel works separately
- Advanced DDS technology with maximum 60 MHz frequency output
- Output linear or logarithm sweep and pulse string waveform
- Comprehensive modulation functions include AM, FM, PM, ASK, FSK, PSK
- USB Hose Optional interface, external modulation input
- 50 groups storage of Custom waveforms

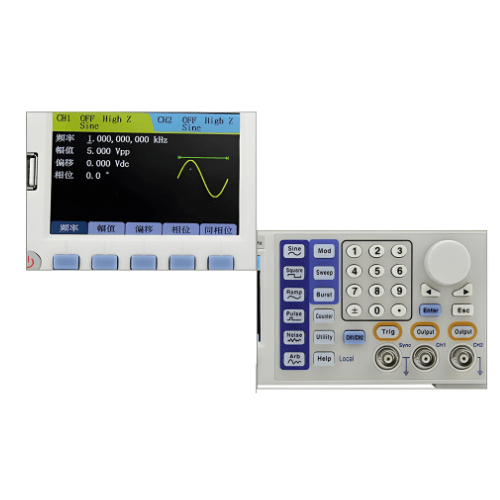

- 5-inch 480 x 320 TFT color LCD
Technical Specifications
| Maximum Sample rate | 200 MSa/s, Frequency resolution: 1 μHz |
| Vertical resolution | 13 bits with maximum 8 K waveform record length |
| Abundant waveform output: | 5 basic waveforms and 32 built-in arbitrary waveforms |
| Frequency | High-accuracy frequency counter integrated and supported range 1 Hz to 100 MHz |

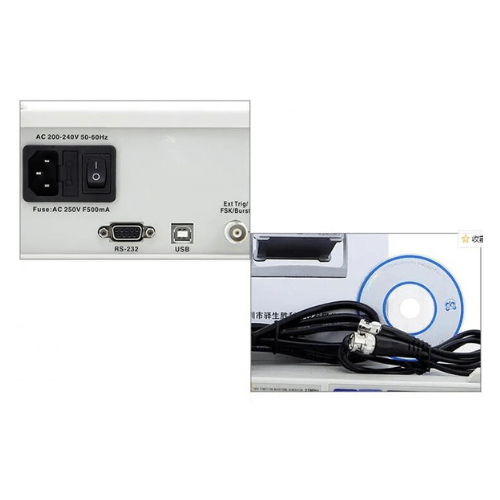

| Standard interface | RS232, USB Device |
| Sine Wave Frequency | 1 μHz to 25 MHz, 1 μHz to 40 MHz, 1 μHz to 60 MHz |
| Square or Triangle Wave Frequency | 1 μHz to 15 MHz, 1 μHz to 15 MHz, 1 μHz to 15 MHz |
| Pulse Wave Frequency | 100 μHz to 6 MHz, 100 μHz to 6 MHz, 100 μHz to 6 MHz |
| Arbitrary Wave Frequency | 1 μHz to 6 MHz, 1 μHz to 6 MHz, 1 μHz to 6 MHz |
| Noise (-3dB) | 7, MHz,7 MHz,7 MHz |
| Vertical Resolution | 13 bits |
| waveform record length | 8 k |
| Sampling rate | 200 MSa/s |
| Min. Frequency Resolution | 1 μHz |
| Frequency Accuracy | ±5 ppm |

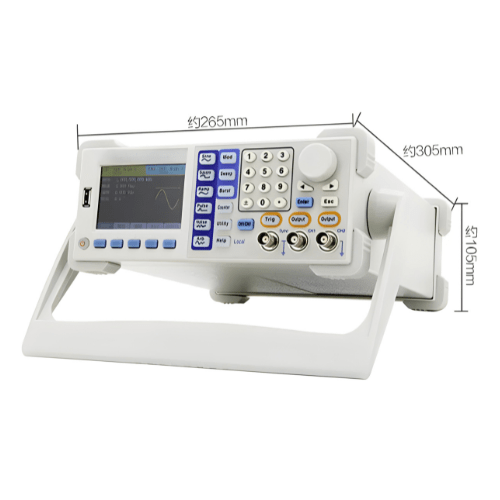

| Dimensions | 11.8 in x 11.8 in x 7.9 in (300 mm X 30 mm X 20 mm) |
| Weight | 11.02 Ib (5.000 kg) |
