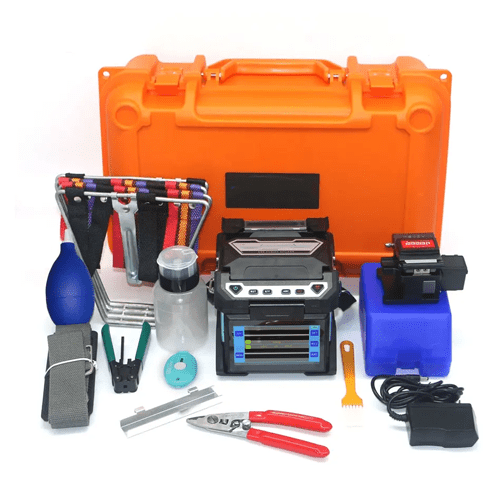

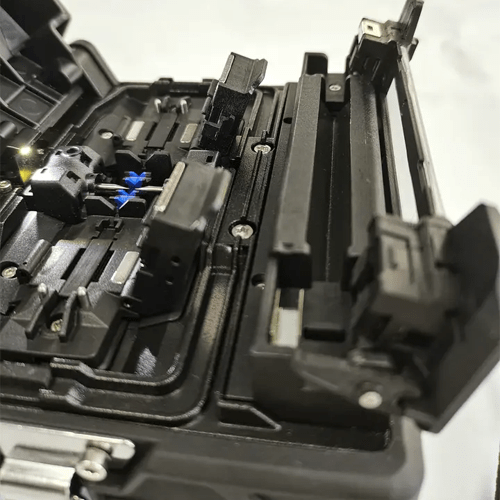

Technical Specification
| Fiber alignment | PAS core alignment |
| Applicable fibers | Single or SMF (G.652 or 657), MMF (G.651), DSF (G.653), NZDSF (G.655), BI (G.657) |
| Cladding diameter | 80 μm to 150 μm |
| Sheath diameter | 100 μm to 1000 μm |
| Cleave length | 0.315 in to 0.63 in (8 mm to 16 mm) |
| Splice mode | Total 100 modes, supports self-defined mode and parameters |
| Typical splice time | 6 s SM FAST |
| Typical splice loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DSF) ,0.04 dB (NZDS) and 0.02 dB (BI) |
| Return loss | >60 dB |
| Heating mode | Max. 20 |
| Heating time | 16 s |
| Applicable protection sleeve | 0.93 in to 2.36 in (10 mm to 60 mm) |
| Splice result storage | Last 20,000 splices |
| Splice image storage | Max 800 |
| Viewing methods | 2 axis CMOS camera with 4.3 in (10.92 cm) HD color capacitive touchscreen |
| Magnification | Supports X or Y or both X and Y simultaneously, maximum up to 760 x magnification |
| Port | MicroSD and USB port for software upgrade or data management |
| Electrode life | Typical 5000 splices |
| Battery compacity | 4000 mAh battery, more than 220 times splicing and heating; Standard charging time 3 hours (up to 80% electric quantity in 2 hours) |
| Power supply | AC 100 V to 240 V, 50 Hz or 60 Hz |
| Tension test | 2N |
| Operating condition | Altitude: 0 ft (0 m) to 3.11 mi (5000 m) above sea level Wind: 15m/sec |
| Storage condition | Temperature: 14 °F to 122 °F (- 10 °C to +50 °C) Humidity: 0% to 95%
Temperature: 14 °F to 176 ° F (-10 ° C to 80 ° C) Battery temperature: 14 °F to 104 ° F (-10 ° C to 40 ° C) |
| Size (W x D x H) | 5.26 in x 5.67 in x 5.26 in (133 mm x 144 mm x 133 mm) |
| Weight | 3.31 lb. (1.5 kg) 3.97 lb. (1.8 kg) including battery |
