Overview

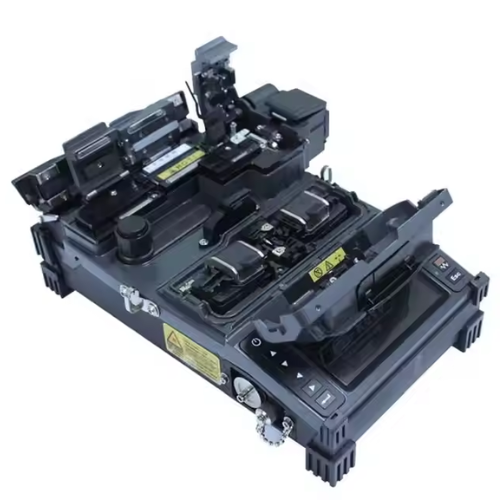

Emissions And Stack fiber optic fusion splicer with rotating blade is the highly advanced and accurate active cladding alignment fusion splicer, which has been designed to perform the major 5 multifunctional features systematically : stripping, cleaning, cleaving, splicing and sleeving. It is best fit for fusion splicing and fusion splice on connector of network applications, which eliminates fatal issues with conventional mechanical connectors.it fusion splice on connector gives our customer the best.
Features
- Rotating blade life allows up to 77,000 cleaves
- Integrated 5 functions in one unit
- The fusion splicer with All In One system provides the best workability onsite and in a limited work space
- No scratches on fiber by thermal stripping
- Compatible with Fusion Splice on Connector in accordance with the industry standards
- Ideal for Enterprise, Datacenter, Broadband and FTTH network applications
Technical Specifications
| Fiber Count | Single fiber |
| Splice Mode | 300 |
| Heat Mode | 100 |
| Return Loss | > 60 dB |
| Splicing Time | 7 s |
| Electrode Life | More than 3000 times |
| Tension Test | 1.96 N to 2.25 N |
| Size | 5.20 in × 8.35 in × 2.87 in (13.2 cm × 21.2 cm × 7.3 cm) |
